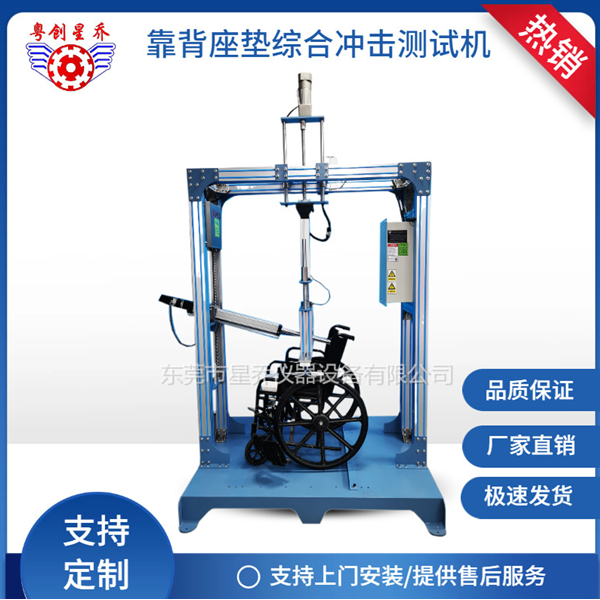

XQ-6456P Handrail Backrest Seat Cushion Impact Comprehensive Testing Machine
I. Purpose of the Wheelchair Vehicle Comprehensive Testing Machine：
The wheelchair seat armrest back seat pad comprehensive testing machine applies loading modules of a certain shape and weight to the seat surface and backrest of the horizontally placed seat at a certain force value and frequency for repeated loading. This tests the strength and durability functions of the wheelchair or chair, and checks the fatigue resistance of the back seat surface of the armrest and the damage conditions of each component.
II. Usage Parameters of the Wheelchair Vehicle Comprehensive Testing Machine：
1. Height of the power drive: Adjustable to suit different chairs
2. Number of tests: Can be set arbitrarily
3. Adjustable test speed: Adjustable
4. Seat load capacity: 200 kg
5. Backrest load capacity: 100 kg
6. Dimensions (Width x Depth x Height): 1400 x 1400 x 2000 mm
7. Weight (approximate): 1200 Kg
8. Power Supply: AC 220V / 50Hz / 5A single-phase
9. Power: 400 W
III. Advantages of the Wheelchair Vehicle Comprehensive Testing Machine：
1.Adjust the travel distance through the intelligent touch screen.
2. Intelligent touch-screen computer-based program control.
3. Use a high-precision force sensor with a wide range.
4. This machine is easy to operate, intelligent and convenient.
IV. Structure of the Wheelchair Vehicle Comprehensive Testing Machine：
1.This testing machine adopts a frame structure.
2. The force value is controlled by using an S-type sensor.
V. Operation Method of Wheelchair Vehicle Comprehensive Testing Machine：
1. First, fix the product on the testing platform.
2. Depending on the position of the brake, the stroke can be adjusted.
3. Enter the microcomputer mode.
4. Set the required test values.
5. Conduct the test upon startup.
VI. Notes for the Wheelchair Vehicle Comprehensive Testing Machine：
1.Before conducting the test, please make sure that the power supply or gas source is properly plugged in or connected.
2. Before conducting the test, make sure that the product is properly installed and fixed.
3. The mechanical transmission parts must be maintained regularly.
4. After the test is completed, it is necessary to ensure that the power supply has been turned off.
5. It is strictly prohibited to use auxiliary corrosive liquids to clean the machine. Instead, rust preventive oil must be used.
6. This testing machine must be used exclusively by one person. During the testing process, it is strictly prohibited to strike the machine or have anyone stand near it.
7. The machinery must be grounded.
