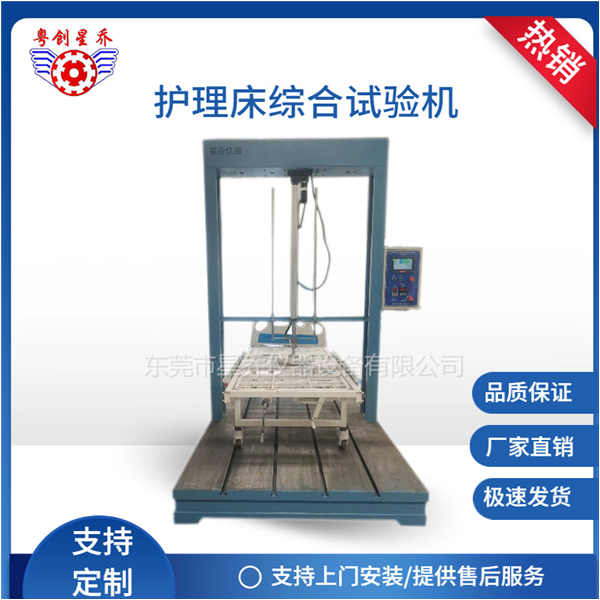

XQ-6256 Nursing Bed Load Comprehensive Testing Machine
I. Overview:
The nursing bed is a special type of bed designed for people with specific needs, such as those suffering from diseases, physical disabilities, or those with limited mobility and inability to take care of themselves. Therefore, the state has strict testing requirements for such beds to ensure their safety. At this time, the testing equipment for nursing bed inspections is very important. Before the products are manufactured, they must pass strict inspections before they can be released from the factory. The load comprehensive testing machine for nursing beds can test dynamic force durability tests, static force tests,
Strength and durability tests of guardrails, etc.
II. Technical Specifications:
1.The dimensions of the installation space are 2000*1500*1200.
2. Maximum vertical force: 200kg
3. Maximum lateral force: 100 kg
4. Four force sensors: Accuracy 0.0010
5. Air source: 5 MPa
6. There are multiple sets of standard fixtures.
7. Power Supply: 220v / 50Hz.
8. Dimensions: Approximately 1500 * 2200 * 2300 mm
9. Weight: 850kg
10. 3 sets of static test fixture cylinders, capable of setting static pressure time and force. Once the set time is reached, the force will be automatically released.
11. A set of cylinders for the dynamic durability testing device, which can set the force and the number of impacts. Once the set number of impacts is reached, it will automatically stop. At the same time, it can conduct the 750N (1000 times) durability test on the lifting ring.
12. Two sets of cylinder fixtures for the strength and durability test of the guardrail, which can set the force and the number of push-pull durability tests. Once the set number is reached, the machine will automatically stop.
III. Usage Instructions:
Ring 750N (using cylinder force, high-precision sensor, load force can be set, load time, repeated pushing and pulling, and impact tests. It is used for the strength and durability test of medical bed guardrails, static compressive test, and repeated compression for 1000 times) durability test.
Our main products include: wheelchair vehicle testing machines: wheelchair vehicle double-roller fatigue tester, wheelchair vehicle static stability tester, wheelchair vehicle drop test machine, wheelchair vehicle strength tester, wheelchair vehicle pendulum impact tester, wheelchair vehicle brake fatigue tester, wheeled walker fatigue tester, etc.; bicycle testing machines include: frame vibration tester, frame pedal force fatigue tester, handlebar fatigue tester, frame vertical force fatigue tester, frame impact tester, tire durability tester, etc.; door and hardware product testing machines include: hinge/door hinge fatigue tester, drawer guide rail fatigue tester, castor fatigue tester, air spring fatigue tester, door repeated opening and closing durability tester, etc.; office furniture testing machines; sports equipment testing machines; luggage testing machines, etc. All products comply with the new standards for testing and can also be customized according to customer requirements. The quality and after-sales service are guaranteed.
