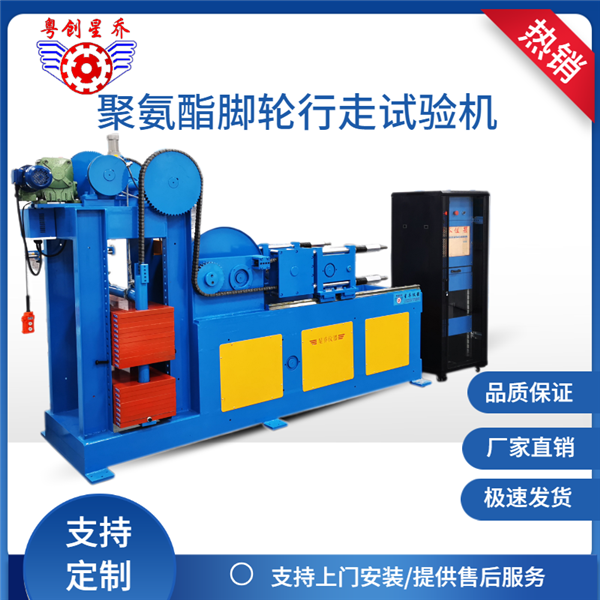

XQ-896 Polyurethane Foot Wheel Testing Machine
1. Application scope of the polyurethane caster testing machine:
This testing machine is suitable for various tests of the lifespan of casters, long-distance movement tests, dynamic tests, static load performance tests, etc. For more information, please refer to the video of the Xingjiaowang universal caster testing machine and the standard of the Shanghai PU caster testing machine.
II. Main parameters of the polyurethane caster testing machine:
1.Load range: 100 - 5000 kg (customizable according to customer requirements)
2. Loading method; Weight-type + Electric control
3. Obstacles: 1 set
4. Obstacle spacing: According to the standard
5. Rolling stock width: According to the standard
6. Installation direction of obstacles: According to the standard
7. Language selection: Dual language display (Chinese and English)
8. Diameter of the rotating disc: Approximately 2 meters or 3 meters (with scale divisions of 0.5 meters)
9. Automatic product damage detection function: The sensitivity of detection can be set arbitrarily.
10. Speed adjustment range: 1 - 10 km/h (can be set arbitrarily)
11. Miniature printer: 1 unit
12. Speed unit: KM/H, M/S (any conversion)
13. Video of the Xingqiao Foot Wheel Testing Machine  Shanghai PU Foot Wheel Testing Machine Standard
III. Advantages of the Polyurethane Foot Wheel Testing Machine:
1. High-end type with closed-loop color touch screen control system, capable of achieving touch screen control.
2. The conversion process is driven by an AC speed-regulating high-speed motor and a specialized gearbox.
3. The driving force is provided by a high-precision controller, an imported variable-frequency motor, and a non-segmented screw rod.
4. The speed is directly displayed, enabling tests for different driving speeds.
5. The driving speed can be set arbitrarily.
6. The test report can be freely copied and micro-printed.
IV. Structure of Polyurethane Foot Wheel Testing Machine:
1.The mainframe is manufactured using a welded structure design.
2. Horizontal loading design.
3. The large drum is designed according to international standards, aiming to realistically simulate the road conditions.
4. The controller is equipped with an independent control panel, featuring an imported 7-inch color touch screen. This allows for intuitive parameter setting and observation of test results.
5. The load application is accomplished by using load sensors to measure the applied load or by employing original mechanical weights for control.
V. Principle of Polyurethane Foot Wheel Testing Machine:
1. First, install the castor wheels on the testing fixture.
2. Supply power to the machinery.
3. Turn on the main power supply, and the indicator light will light up.
4. Enter the intelligent touch screen and set the required test values.
5. According to the test requirements, adjust the weight of the test weights as needed.
6. Proceed to the test.
VI. Testing Standards for Polyurethane Foot Wheel Testing Machine:
The design basis is based on European and UL standards as well as the national standard GB/T. It uses a large rotating wheel as the driving wheel to drive the tested foot wheels.
VII. Notes for Polyurethane Foot Wheel Testing Machine:
1.Before conducting the test, please make sure that the three-phase power is properly plugged in or connected.
2. When installing the load (weights) and the casters, make sure that the bracket is not loose in any way (such as with loose screws). If any looseness is detected, tighten it before conducting the test.
3. When the machine is in operation, it is strictly prohibited to get too close to it.
4. The mechanical transmission parts must be maintained regularly and lubricating oil must be added at regular intervals.
5. After the test is completed, it is necessary to ensure that the power supply has been turned off.
6. It is strictly prohibited to use auxiliary corrosive liquids to clean the machine. Instead, rust preventive oil must be used.
7. The polyurethane caster testing machine must be used exclusively by one person. The machine must not be knocked on or occupied by anyone.
8. The mechanical part of the polyurethane caster testing machine must be grounded.
