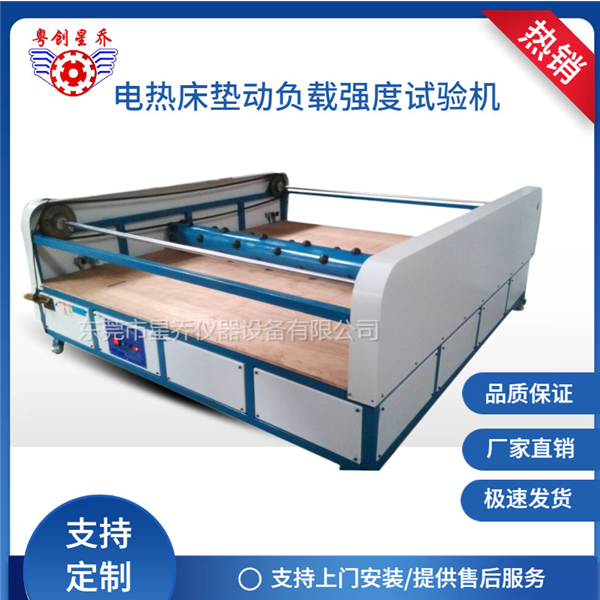

XQ-01-2 Electric Heating Pad Dynamic Load Testing Machine
1. Test standards for electric heating pad dynamic load testing machine：
This testing machine complies fully with the 21.104 test requirements stipulated in GB4706.8-2008 "Safety of Household and Similar Electrical Appliances - Special Requirements for Electric Heating Blankets, Electric Heating Mats, Electric Heating Cushions and Similar Flexible Heating Appliances", as well as the relevant technical requirements of QB/T2994-2008 "Electric Heating Blankets, Electric Heating Mats and Electric Heating Cushions". It meets the latest version of the "Implementation Rules for the Production License of Electric Heating Blankets".
II. Application Scope of Electric Heating Pad Load Testing Machine：
This instrument is suitable for conducting mechanical strength tests on electric heating mattress pads under simulated actual usage conditions. It has a reasonable and compact structure, is easy to use, and has an attractive appearance. It is an essential testing instrument for inspection institutions and manufacturers of electric heating mattress pads.
III. Main parameters of the electric heating pad dynamic load testing machine：
1.Roller length: 2.2 * 2M (large size)
2. Working cycle: 1000mm
3. Overall machine weight: 380kg
4. Drive speed: 125mm/s
5. Equipment dimensions: Approximately 2400 × 2200 × 500 mm; Refer to the actual product for accuracy.
6. Test power supply: 220V/50HZ
7. Test power: 200W
IV. Advantages of the Electric Heating Pad Load Testing Machine：
This testing machine is suitable for mechanical dynamic load tests of electric heating mattresses and jade heating mattresses. It can meet the testing requirements regardless of the size or thickness of the product, and will automatically stop when the required test value is reached. This testing machine is an essential testing instrument for manufacturing enterprises and testing institutions.
V. Structure of the Electric Heating Pad Load Testing Machine：
This testing machine is of a frame structure. The driver is a domestic precision motor. The force is stable, the service life is long, and the noise is low. The pressing device is made according to standards in terms of size, length, weight. The casing shell is treated with high-temperature resistant spray painting, maintaining the original color permanently.
VI. Operating Procedures for Electric Heating Pad Load Testing Machine：
1. First, fix the product onto the testing fixture.
2. The machine is powered on, the main power supply is turned on, and it enters the parameter setting mode.
3. Set the required values according to the test requirements.
4. Conduct the experiment by starting the machinery. Once the required value is reached, the machinery will automatically stop.
VII. Precautions for the Electric Heating Pad Load Testing Machine：
1.Before conducting the test, please make sure that the power supply is properly plugged in or connected.
2. Before conducting the test, make sure that the product is properly installed and fixed.
3. The mechanical transmission parts must be maintained regularly.
4. After the test is completed, it is necessary to ensure that the power supply has been turned off.
5. It is strictly prohibited to use secondary corrosive liquids to clean the machine. Instead, rust preventive oil must be used.
6. This testing machine must be used exclusively by one person. During the testing process, it is strictly prohibited to strike the machine or have anyone stand near it.
7. The machinery must be grounded.
