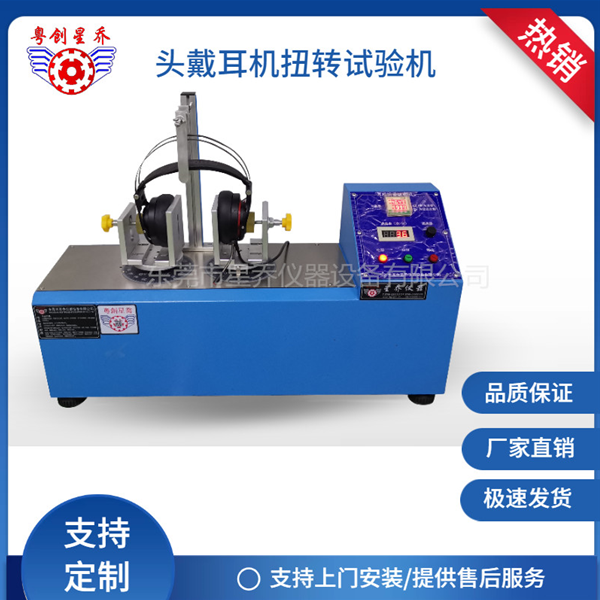

XQ-860F3 Headphone Torsion Testing Machine
1. Revise the application scope of the testing machine:
This machine is suitable for testing the torsion lifespan of the rotating shaft of head-mounted earphone receivers. The torsion testing method is as follows: Fix one of the left and right earphone receivers on the torsion fixture, and fix the headband on the support frame. Set the test angle and rotation speed. After conducting N tests, remove the earphone and inspect the performance of the rotating shaft.
II. Main parameters of the torsion testing machine:
1. Working power supply: AC 220V/50Hz
2. Power: 100W
3. Test speed: Adjustable as desired
4. Rotation Angle: Touch any setting
5. Test Station: 1 station
6. Jig: 1 set (standard configuration)
7. Span: Adjustable as needed
8. Total folding times: Adjustable as needed
9. Resetting the count: Automatic and manual conversion functions
10. Dimensions: (Length * Width * Height) 620 * 310 * 400 mm
11. Weight: Approximately 68 kilograms
III. Characteristics of the Torsion Testing Machine:
1.All test conditions are directly controlled through touch input.
2. It can display the true angle and distortion speed of the product.
3. According to the size of the tested product, adjust the fine-tuning tool to ensure that the rotating shaft and the transmission shaft of the product are aligned.
4. The hardware adopts a stepping precision motor + high-precision PLC + 7-inch color touch screen. It operates smoothly; it has large torque, high positioning accuracy, long service life and low noise.
5. The touchscreen provides functions such as internal startup, reset, reverse rotation of the starting point, and point finding...
IV. Reconfigure the structure of the testing machine:
1.This machine adopts a box-type structure.
2. The surface is treated with high-temperature resistant enamel coating.
3. The controller is controlled by an intelligent touch screen.
V. Instructions for operating the torsion testing machine:
1. First, fix the product onto the testing fixture.
2. The machine is powered on and the indicator light is illuminated.
3. Enter the intelligent control page and set the required values.
4. Conduct the test.
VI. Precautions for the Torsion Testing Machine:
1.Before conducting the test, please make sure that the power supply is properly plugged in or connected.
2. Before conducting the test, make sure that the product is properly installed and fixed.
3. The mechanical transmission parts must be maintained regularly.
4. After the test is completed, it is necessary to ensure that the power supply has been turned off.
5. It is strictly prohibited to use auxiliary corrosive liquids to clean the machine. Instead, rust preventive oil must be used.
6. This testing machine must be used exclusively by one person. During the testing process, it is strictly prohibited to strike the machine or have anyone stand near it.
7. The machinery must be grounded.
