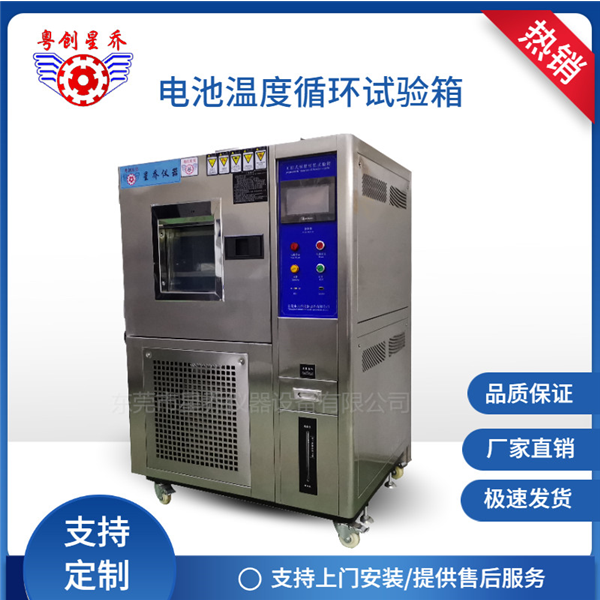

XQ-MHU-100DC Thermal Cycling Test Chamber
I. Application Scope of the Cold and Hot Cycle Test Chamber;
The high and low temperature alternating test chamber, also known as the constant temperature and humidity test chamber, can accurately simulate complex natural conditions such as low temperature, high temperature, high temperature and high humidity, low temperature and low humidity. It is suitable for quality inspection of electronic, electrical, batteries, plastics, food, paper products, vehicles, metals, chemicals, building materials, research institutes, inspection and quarantine bureaus, universities and other industry units. It complies with: GB/2423.1; GB/2423.2; GB/2423.3, GB/2423.4 testing standards.
II. Standard for Cold and Hot Cycle Test Chamber;
Can meet the following standards: GB2423.1-89 Low Temperature Test Method  GB2423.2-89 High Temperature Test Method  GB2423-93 Test D6 Alternating Wet Heat Test Method  IEC68-2-30 Test Method
III. Features of the Cold and Hot Cycle Test Chamber;
The balanced temperature and humidity control system (BTHC) uses the P.I.D. method to control the SSR, ensuring that the heating and humidifying capacity of the system is equal to the heat and moisture loss. Thus, it can be used stably for a long time.
IV. Main parameters of the temperature cycling test chamber;
1.Temperature: Room temperature -40 to +150 or -70 to +150 (as specified by the customer)
2. Relative humidity: 20% - 98%
3. Power: Approximately 3.5KW
4. Inner box dimensions (width * height * depth): 500 * 400 * 500 mm
5. Outer box dimensions (width x height x depth): 670 x 1650 x 1100 mm
6. Power Supply: 40A / 220V
7. Heating and cooling rates: Approximately 1°C to 3°C per minute. Cooling rate: Approximately 0.8°C to 1°C per minute.
8. Machine Accuracy: 1. Resolution Accuracy: a. Temperature: 0.01°C  b. Humidity: 0.1% RH
9. Control Accuracy: a. Temperature: ±0.3°C  b. Humidity: ±1.5%RH
10. Temperature and Humidity Uniformity: a. Temperature uniformity ±1°C  b. Relative humidity uniformity: ±2%RH
11. Temperature fluctuation: ±0.5°C
V. Structure of the Cold and Hot Cycling Test Chamber;
1. Inner box material: SUS#304 high-temperature resistant and low-temperature resistant mirror-finish stainless steel plate.
2. Outer box material: SUS#304 high-temperature resistant stainless steel plate, treated with matte finish lines.
3. Insulation material: High-strength PU foam and high-density glass fiber cotton.
4. Anti-sweating Components: Anti-sweating treatment is achieved using the thermal energy of the system K-type tubes.
VI. Operating Procedures for the Cold and Hot Cycling Test Chamber;
1. First, connect the machinery properly and turn on the main power supply of the machinery.
2. Enter the intelligent program and set the required values as per the instructions.
3. Place the product in the testing area for testing.
4. Once the required experimental equipment is reached, it will automatically shut down and the product will be removed.
5. When the machine is not in use, please turn off the power supply.
VII. Notes for the Cold and Hot Cycling Test Chamber;
1.Before conducting the test, please make sure that the power supply is properly plugged in or connected.
2. When conducting the test, make sure that the security door is properly closed.
3. The machinery must be maintained regularly.
4. After the test is completed, it is necessary to ensure that the power supply has been turned off.
5. It is strictly prohibited to use auxiliary corrosive liquids to clean the machine. Instead, rust-proof oil must be used.
6. This testing machine must be used exclusively by one person. The machine must not be knocked on or occupied by anyone.
7. The machine must not be inverted or tilted. If it is tilted, it must be moved away and left idle for 24 hours before it can be powered on and used again.
