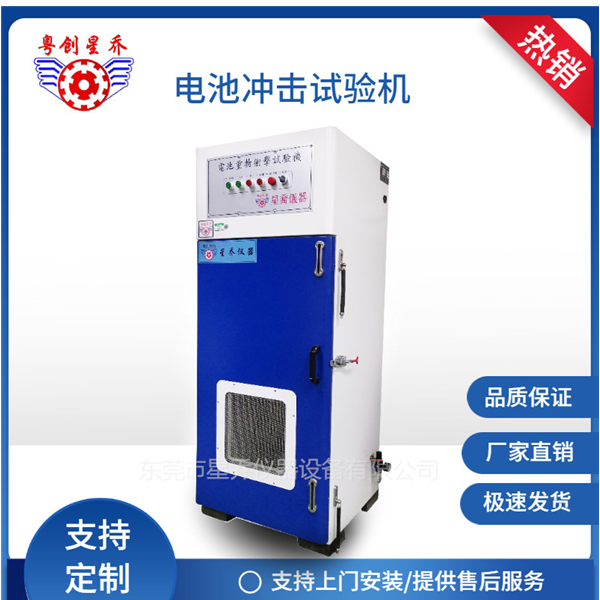

XQ-6040 Battery Impact Testing Machine
I. Scope of Application for Battery Impact Testing Machine;
After charging the battery according to the test method specified in 4.5.1, place the battery on the platform surface. Place a 1.58mm ± 0.2mm diameter metal rod horizontally on the upper surface of the geometric center of the battery. Use a 9.1kg ± 0.1kg weight to drop freely from a height of 610mm ± 25mm onto the surface of the battery with the metal rod placed on it, and observe for 6 hours.
II. Main parameters of the battery impact testing machine;
1. Inner box material: High-quality integrated high-temperature enamel coating
2. Outer box material: Double-layer cold plate treated with high-temperature baking paint.
3. Impact height: Standard height is 610mm and can be adjusted (from 0 to 700mm).
4. Impact weight: 9.1kg (standard configuration)
5. Impact testing rod: 15.8 mm
6. Lifting device: 1 set
7. Height indication: Steel ruler scale, minimum division 1mm
8. Elevating weight block: Automatic operation, and it stops automatically when it reaches the desired height.
9. Exhaust Outlet: Located on the rear side of the box, there is 1 set.
10. Box door: Double-layer door, with cold-rolled handle lock
11. Observation window: 300 * 300 mm
12. Power Supply: AC 220V / 5A
13. Air source: 5 kilograms or less
14. Operating Environment: Permissible Operating Environment: 0 - 30℃, Performance Guarantee Environment: 5 - 25℃
15. Machine dimensions: Approximately 650 * 750 * 1600 mm
16. Weight: Approximately 180 kilograms
III. Advantages of the Battery Impact Testing Machine;
1.The heavy weight is automatically lifted and stops at the desired height.
2. The test is completed by the automatic drop hammer.
3. The box body is equipped with double-layer protection function.
4. Internal box exhaust fan, high-temperature explosion-proof lamp.
IV. Structure of Battery Impact Testing Machine;
1.This machine is equipped with a double-layer thickened explosion-proof box.
2. The impact is achieved through a free-falling hammer method.
V. Operation Method of Battery Impact Testing Machine;
1. First, install the product in the testing area.
2. Adjust the limit switches according to the test standards.
3. After connecting the gas source, turn on the main power supply of the machinery and proceed with the test.
VI. Notes for Battery Impact Testing Machine;
1.Before conducting the test, please make sure that the power supply and air source are connected correctly.
2. When the machine is in operation, it is strictly prohibited to get too close to it.
3. The mechanical transmission parts must be maintained regularly.
4. After the test is completed, it is necessary to ensure that the power supply has been turned off.
5. It is strictly prohibited to use auxiliary corrosive liquids to clean the machine. Instead, rust-proof oil must be used.
6. This testing machine must be used exclusively by one person. The machine must not be knocked on or occupied by anyone.
7. The machinery must be grounded.
