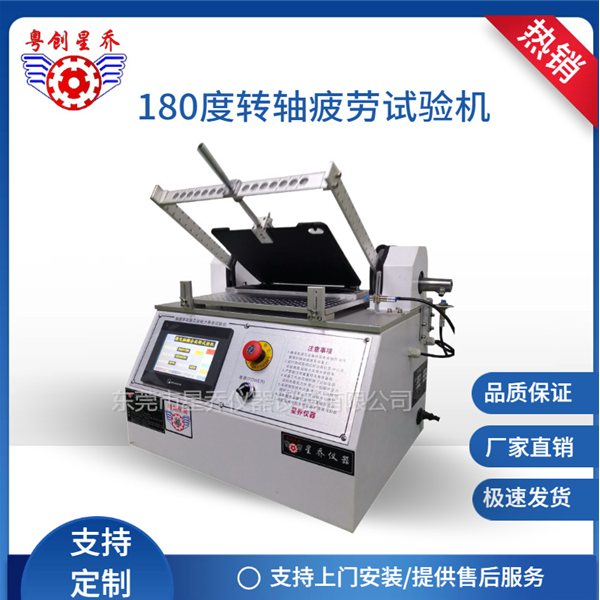

XQ-5600A Spindle Life Testing Machine
I. Application scope of the spindle life testing machine;
This device is applicable to notebook computers and semi-finished chassis. After the cover is opened and closed multiple times, does the hinge still have retention force or does the resistance of the hinge increase, causing damage to the plastic body?
II. Characteristics of the Spindle Life Testing Machine;
This machine is equipped with a high-end touch LCD screen displaying in full Chinese. It is easy to use. All adjustments are made through numerical control. The angle, speed and frequency can be adjusted arbitrarily. The hardware adopts a stepper motor + high-precision PLC + touch control method. It has high precision, low noise, long service life, stable test reliability, and the mechanical data is saved when reaching the set value, and the machine automatically stops.
III. Parameters of the spindle life testing machine;
1. Standard test product size: Can be customized according to the customer's sample specifications.
2. Overall machine dimensions: Approximately 830 * 500 * 900 mm
3. Working surface height: Adjustable
4. Limit protection; bilateral
5. Driving source: Imported stepper motor + aluminum alloy gearbox + high-precision PLC
6. Control: Utilizes hardware components including stepper motors, high-precision PLC, and touch screen.
7. Angle setting: 5 - 180° Allowable error: ≤ 5°
8. Number of times setting: 1 to 999,999 (can be set arbitrarily)
9. Swing speed: Adjustable from 1 to 20 times per minute
10. Speed unit: Set either as "times/minute" or "degrees/minute"
11. Weight: Approximately 110 kilograms
12. Power Supply: AC 220V 50Hz
IV. Operating Procedures for the Spindle Life Testing Machine;
1. First, fix the product onto the testing fixture.
2. After fixing the product.
3. The machine is powered on, the required test values are set, and the machine then conducts the test.
4. Once the test value is reached, the machine will automatically stop, and the test result will be displayed clearly.
V. Precautions for the Spindle Life Testing Machine;
1.Before conducting the test, please make sure that the power supply is properly plugged in or connected.
2. Before conducting the test, make sure that the product is properly installed and fixed.
3. The mechanical transmission parts must be maintained regularly.
4. After the test is completed, it is necessary to ensure that the power supply has been turned off.
5. It is strictly prohibited to use secondary corrosive liquids to clean the machine. Instead, rust preventive oil must be used.
6. This testing machine must be used exclusively by one person. During the testing process, it is strictly prohibited to strike the machine or have anyone stand near it.
7. The machinery must be grounded.
