I. Main Parameters：

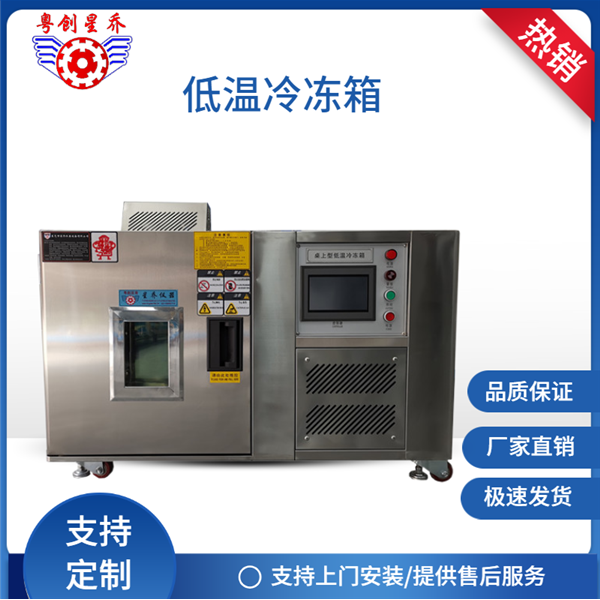

This low-temperature freezing test chamber can simulate various low-temperature environments and is suitable for testing electronic, electrical, food, new energy vehicles, batteries, rubber, plastic adhesives, metals and other products. It can evaluate the reliability and stability performance of these products under various harsh environments, providing you with a basis for predicting and improving product quality and reliability.
II. Features：
1.The 7-inch TEMI880 color touch screen provides an intuitive and easy-to-operate display, with a permanent historical data storage function.
2. Set up the function for scheduling power on/off, complete the planning settings, and automatically save the data curves during power outages.
3. After the test is completed, the sample to be tested will automatically return to room temperature to prevent frosting and condensation, thus protecting the mechanism.
4. By adopting servo refrigerant flow control technology, an energy saving of over 30% can be achieved.
5. The experiment cycle continues without affecting the impact time.
6. Utilizing pure aluminum finned evaporators can effectively reduce the storage time and achieve energy savings.
III. Main Parameters：
1.Inner box dimensions: 350*350*400 (mm)
2. Outer box dimensions: 1130 * 880 * 900 (mm)
3. Accuracy of measurement: Temperature: ±0.01℃;
4. Temperature range: Adjustable from -0°C to -40°C
5. Temperature range: Adjustable from 1 to 10 degrees.
6. Temperature fluctuation: ±0.5℃
7. Temperature uniformity: ±2.0℃
8. Cooling rate: 0.5℃ - 1.5℃/min (from room temperature to the lowest temperature, non-linear unloaded state)
9. Total power: 3000W
10. Power Supply: AC 220V / 50HZ
11. Weight: 100KG
