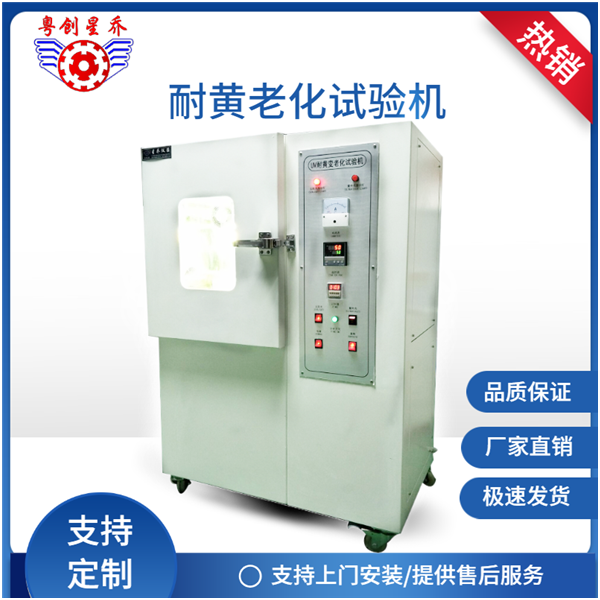

I. Overview of This Machine:
This product is used to test various products and materials under sunlight and ultraviolet light conditions. After being exposed to light for a certain period of time, the light resistance aging grades are classified as A (for sunlight exposure) and B (for ultraviolet light exposure). This product adopts and complies with the HG/T 3689/ASTM-D1148-1995 standard.
II. Main Technical Specifications:
1. Power Supply Voltage: 220V/50HZ
2. Inner box dimensions: 500*400*500MM (Imported #304 stainless steel inner liner)
3. Rotation speed of the turntable: The standard value is typically 3 RPM/min.
4. Diameter of the turntable: 300 mm
5. Number of turntables: 1
6. Rotary motor: 40W
7. Light distance: 0 - 300 mm (250 mm is the standard)
8. Solar Light: 375W 1 unit. The wavelength of ultraviolet light is 360nm.
9. Ultraviolet Light: 15W, 2 units. The wavelength of the ultraviolet light is 360nm.
10. Temperature Control Indicator: Digital type (room temperature - 80℃). It can be set arbitrarily or customized according to requirements. It is equipped with a PDA for management.
11. Timer: Set from 0 to 9999 hours
12. Heating method: U-shaped heating element, hot air circulation
13. Standard shielding panel: 8 pieces
14. Temperature range: Room temperature (RT) to 80℃ ± 2℃ (commonly 50℃) or as per customer requirements (200℃ ± 5℃)
15. Volume (L*D*H): 930*630*1130mm
