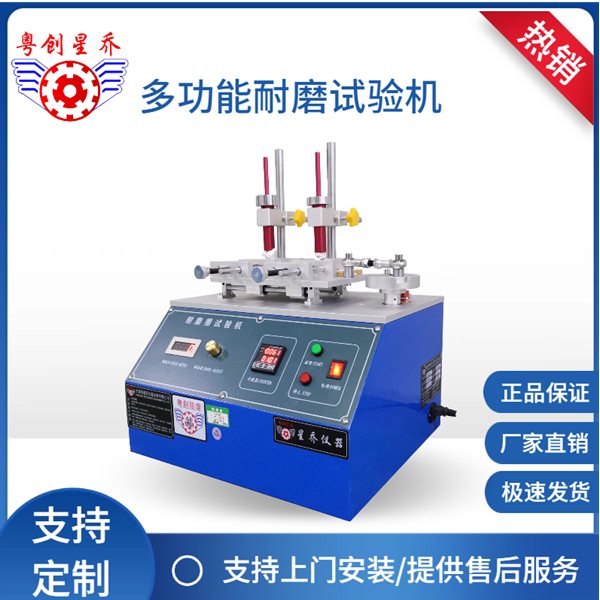

XQ-5600Y Toothbrush Surface Paint Abrasion Testing Machine
I. Main Features of This Machine：
The wear resistance testing machine adopts a variable camshaft structure, driven by a motor, enabling the work to perform left and right dual-position movement along with the motor. It also has the function of adjusting the speed and stroke during the test (without the need to shut down the machine), and the adjustment is very easy. It can display the test speed and set the number of tests; thus, it can be used to conduct wear resistance tests on various products' printed patterns such as spraying oil, silk-screen printing, etc. The abrasive medium is: erasers, cotton cloth, etc. This machine is suitable for the manufacturing industry of various types of wear resistance testing machines for products such as adjusting the oil cavities, silk-screen printing, baking paint, electroplating, etc.
II. Main Technical Specifications:
1.Withstand load: 10kg
2. Test travel: 2 - 60 mm (adjustable)
3. Test stations: 2
4. Test speed: 10 - 60 rpm/min (adjustable)
5. Speed and Frequency: Digital display, direct reading
6. Counter: Can be set from 1 to 999,99
7. Load weights: 50g, 100g, 200g, 300g, 500g each 2 pieces, totaling 10 pieces.
8. Friction material: Cotton cloth (alcohol provided by yourself)
9. Friction fixture head: Alcohol fixture.
10. Working power supply: AC 220V/50Hz
11. Power: 60W
12. Dimensions: Approximately 550 (length) * 450 (width) * 300 (height) mm
13. Tool Box: 1 piece
14. Machine weight (approximate): 60 kg
III. Important Notice：
Since each type of testing instrument has its own industry-specific characteristics, even if the product name is the same, due to the different target industries, the customer's product will also be different, and the compliance with international and national industry standards will also vary. The instrument equipment should determine the material, process, technical parameters, control procedures and other related configurations according to the customer's usage requirements.
The prices of the products displayed in this store and the various testing equipment are merely for reference and cannot be regarded as the actual transaction prices. The actual transaction prices and pictures will be based on the quotation plans made by our sales staff according to the customer's requirements.
