I. Purpose;

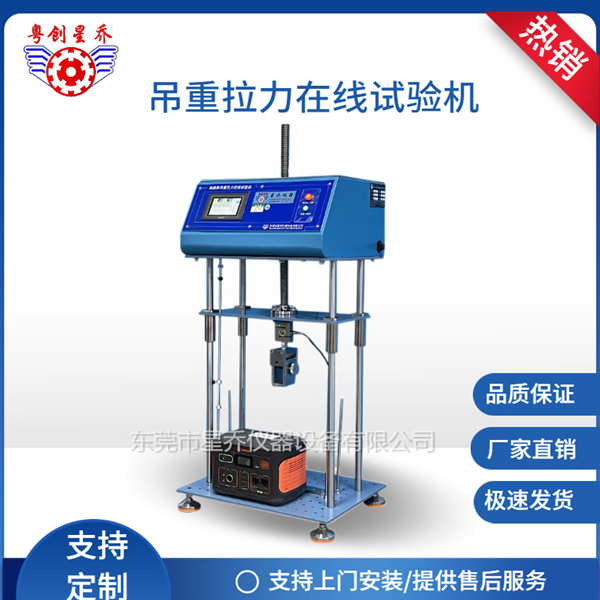

The lifting force testing machine is equipped with a high-precision speed-regulating motor, which drives a dedicated aluminum alloy gearbox with a full aluminum alloy transmission system and a speed-regulating motor. All the key components, such as the transmission mechanism, are equipped with imported NSK bearings. This design aims to achieve greater reliability and stability. It is a mechanical structure specifically designed to meet the requirements of automatic testing with positioning displacement and load determination, featuring high performance. The entire machine is characterized by low power consumption, high power output, simple operation, compact structure, high accuracy, and comprehensive functions.
It is used to set the required or specified force load or displacement distance within the product screen. It can automatically count, and automatically returns to the original position after the test. It has functions such as timing, force measurement, and damage drop test, etc. It is a multi-functional model.
II. Specifications and Parameters;
1.Resolution: 1/300000, Sampling frequency: 4500 times per second;
2. Force accuracy: ±0.5% of the indicated value (for ranges of 20 to 100% of the full scale).
3. Maximum lifting capacity: 200 kg
4. Testing station: One station
5. Testing fixtures: 1 set (customized according to the customer's sample)
6. Displacement resolution: 0.001mm
7. Test speed: 0.01mm to 300mm per minute (can be set arbitrarily).
8. Speed accuracy: The indication error is within ±0.5%.
9. Test table surface: 500*500mm
10. Unit: kgf/N/lbf can be switched at will
11. Displacement: mm/cm/in;
12. Power: 400W
13. Length: 500mm (excluding fixture)
14. Main configuration: High-precision trapezoidal screw rod + fully aluminum alloy gearbox for the pot wheel + speed control motor + intelligent touch screen controller
15. Time range: 0.03 - 999999.99 M (can be set arbitrarily)
16. Positioning displacement range: 0 - 9999.99 MM (within the actual travel range)
17. Power supply: 220V/50Hz;
18. Mechanical weight: Approximately 263 kg
III. Characteristics;
1.Main functions: Real-time tension value, peak value, displacement at the point of force application, load at a fixed point, time at a fixed point, automatic return to original position, and multiple testing methods are available. Automatic display and calculation are also provided.
2. Shutdown mode: Automatically stops the machine after the maximum force of the test causes the specimen to break, automatically stops when the time limit is reached, and automatically stops when the load reaches a certain level.
3. Control method: Intelligent touch-based operation and display.
4. Limit protection: It has two levels of protection: programmable control and mechanical protection.
5. Overload protection: The machine will automatically shut down when the load exceeds the rated value.
6. The software overload protection function can be set.
7. Automatic reset: Once the device receives the instruction, the measurement system will automatically reset.
8. Random language switching: Simplified Chinese, Traditional Chinese, English.
9. Emergency Shutdown: An emergency stop switch is provided, which can be used to cut off the power supply of the entire machine in an emergency situation.
10. Upon reaching the test results, the automatic reset function is activated.
