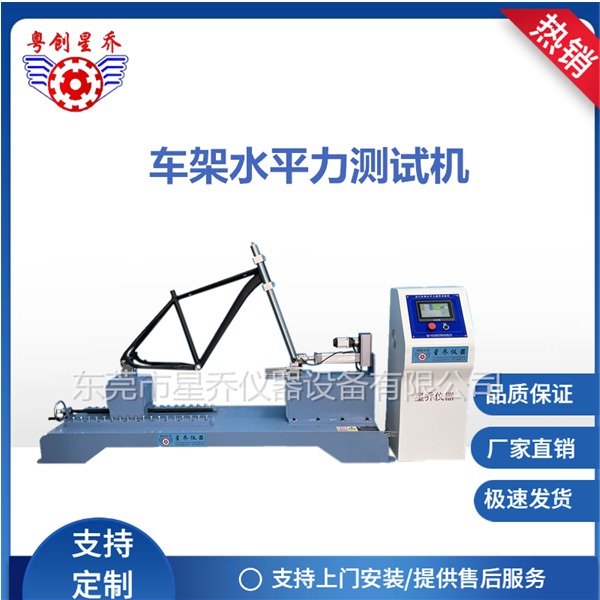

XQ-3157 Bicycle Frame Horizontal and Vertical Dynamic Testing Machine
I. Instrument Overview:
1. Power element servo motor type, suitable for various components and materials of bicycles. It can conduct fatigue and other dynamic tests using modular fixtures.
2. The modular fixtures can be used in accordance with various bicycle standards such as EN (European Union), GB (National Standard), QB (Industry Standard), etc.
II. Instrument Parameters:
1. Machine structure: It is of floor-standing type with a fully steel structure. The spacing can be adjusted: approximately 300 mm. The connecting plates are fixed by manual screws for locking.
2. Two sets of servo actuators
3. Capacity: 300 kg.
4. Traveling distance: ±100mm.
5. Test frequency: 1 to 3 Hz.
6. Amplitude: Approximately ±5mm.
7. Two sets of displacement sensors.
8. Load cell 2 group: Fatigue test uses disc-type load cells.
9. One set of horizontal fixtures
10. One set of vertical fixtures
11. Capacity: 100 kg
