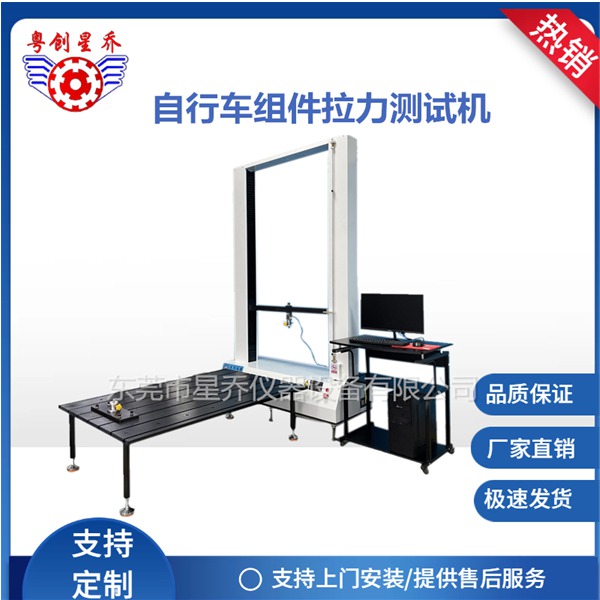

Bicycle component tensile testing machine
XQ-997S Universal Material Tensile Testing Machine
I. Machine Usage：
It is widely used for the mechanical property tests of non-metallic materials such as rubber, plastic, wire and cable, textiles, waterproof materials, non-woven fabrics, etc., as well as for metals such as metal wires, metal foils, metal plates and metal rods, including tensile, compression, bending, etc. It is also compatible with special fixtures and can be used for various tests such as stretching, compression, peeling, shearing, tearing, and bending (crimping) of finished products.
II. Specifications and Parameters：
Capacity selection | kg | 20000N（2T） |
Test accuracy | 高精度型 | 0.5 Level |
Load sensing | High-precision tension-compression transducer | |
Load resolution | 1/300000 | |
Strength resolution | 0.5% | |
Displacement accuracy | ±0.1mm | |
Magnification factor | 24-bit AD non-linear amplification | |
Unit selection | N，KN，Kgf，Lbf Switch at will | |
Test speed range
| Servo type, with computer input for adjustable range of 0.5 to 500 mm/min | |
When the speed exceeds 50 mm/min, the force applied should not be less than 25% of the maximum test force (GB/T) | ||
16491-1996) | ||
Speed control accuracy | ±0.2 (0.5 Level ) | |
Test effective width | Standard type: 420 mm (or customized according to customer requirements) | |
Test run (excluding fixtures) | Standard type: 1000 mm (or customized according to customer requirements) | |
Overload setting protection function | When the load sensor is within the 1% - 100% range, the system automatically shuts down for protection. | |
Trip itinerary protection function | The upper and lower limit positions of the journey are set with protection measures. | |
动力 | 伺服马达 | AC servo motor & servo drive controller |
电源/功率 | 1ø, 220 VAC, 50/60 Hz，1500W | |
计测系统 | 硬体规格 | Provide a computer kit (standard configuration) |
专用软体 | Computer measurement system software version (standard configuration) | |
重量 | 主机 | About 185kg |
