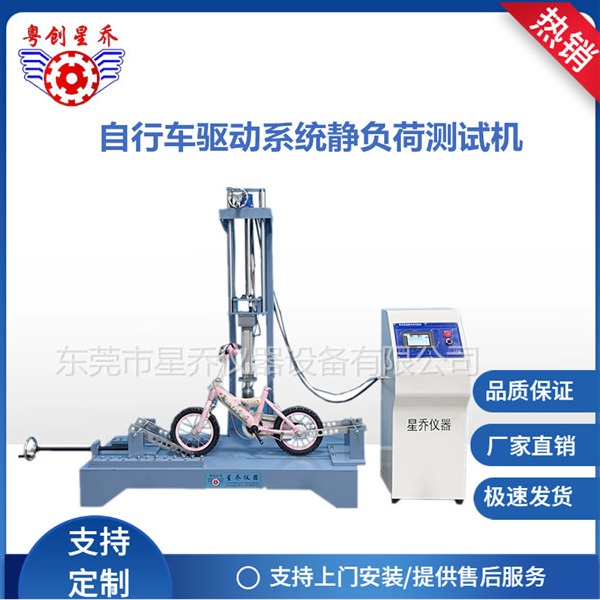

XQ-1805 Bicycle Drive System Static Load Testing Machine
1. The purpose of the bicycle drive system static load testing machine:
The bicycle drive system static load testing machine is used to measure the combined components of a child's bicycle, including the frame, pedals, transmission system and rear wheel. If there is a shifting mechanism, it is also included in the testing scope. A certain force is gradually applied to the centers of the left and right pedals, and after maintaining for 15 seconds, it is checked for any damage.
II. Static Load Test Machine for Bicycle Drive System in accordance with standards:
Design standards: GB 14746-93 4.11 3.10, GB 3565-93 27.1, JIS, EN
III.Technical parameters of the bicycle drive system static load testing machine:
1.Load: Adjustable from 0 to 2000N
2. Accuracy of force display: ≤ ±1%
3. Timer: Can be set from 0 to 60 seconds.
4. Display mode: LCD touch screen digital display
5. Power Supply: 220V/50Hz
6. Weight: 300KG
7. Dimensions: 1860*700*1800mm
8. Power: 600W
9. Model: XQ-1805
10. Test station: One
11. Test fixtures: Two sets (one set each for front and back)
