I. Main Explanation:

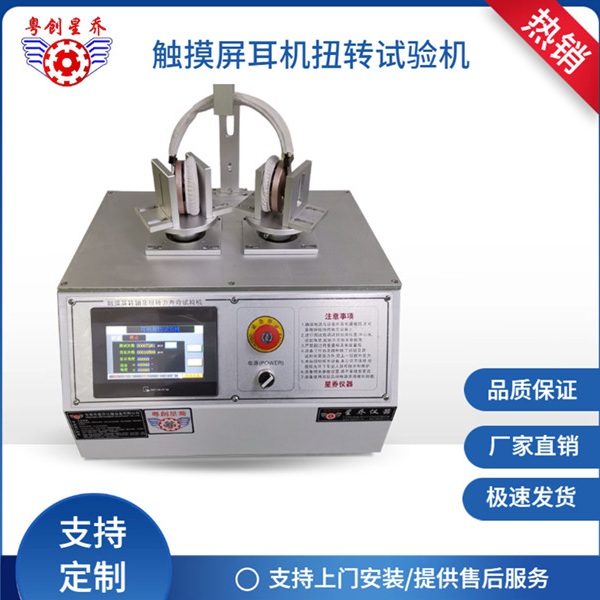

This testing machine is specifically designed for headband headphones' distortion testing and various angles' torsional fatigue life tests. The machine is equipped with an intelligent 7-inch touch screen + PLC + stepper motor control. There is no need for mechanical adjustment to set the angle. You can directly input the angle, number of times, and speed on the touch screen to complete the test. It is suitable for use in factories, research institutions for development and evaluation purposes.
II. Main Technical Specifications:
1. Working power supply: AC 220V/50Hz
2. Power: 60W
3. Test speed: Adjustable from 10 to 35 times per minute.
4. Rotation angle adjustment: 90° (can be set arbitrarily within the touch screen)
5. Test Station: 1 station
6. Total number of rotations: Can be preset from 0 to 999,99
7. Dimensions: (Length * Width * Height) 620 * 310 * 400 mm
8. Weight: Approximately 50 kilograms
9. Angle: Touchscreen display
