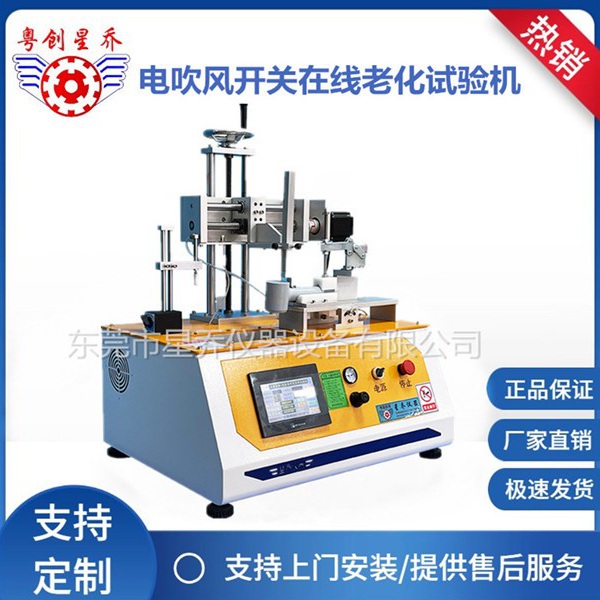

XQ-8812 Electric Hair Dryer Online Operation Life Test Machine
I. Purpose:
This testing machine was manufactured according to the customer's requirements. It is suitable for conducting online simulation of switch-closing and switch-opening operations for the finished electric hair dryers to test their aging and lifespan. It simulates the actual usage by manually switching between the temperature and wind speed settings, and checks whether the product is damaged or stops operating.
II. Specifications and Parameters:
1. Working power supply: AC 120V/50Hz or as specified by the country.
2. Power: 500W (Excluding the load of the test specimen itself)
3. Test rate: Adjustable from 5 to 30 times per minute
4. Total number of tests: 1 - 999999 (with a function to stop the operation upon reaching the specified number of tests)
5. Total test distance: 200mm, adjustable at will
6. Gear spacing: 1 - 50mm
7. Test gear: 3 gears or as specified by the sample.
8. Product origin or starting point: Can be manually set arbitrarily
9. Pause time interval: 0.1 seconds to 10 minutes (user-defined)
10. Test station: 1 (Electric hair dryer finished product)
