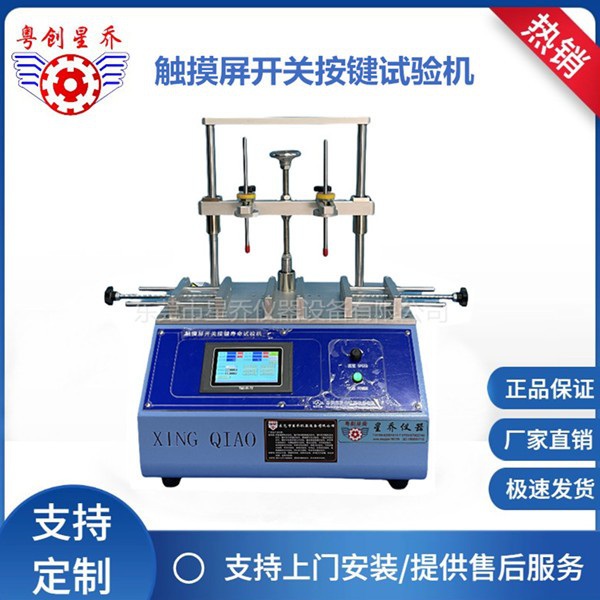

XQ-5902 Touch Screen Switch Button Life Testing Machine
I. Product Overview;
This machine is suitable for testing the lifespan of switch buttons, such as wall switches, boat-shaped switches, lever switches, touch switches and flat switches, etc. Different test fixtures can be selected according to the customer's samples to meet the testing requirements. This machine is controlled by a microcomputer and uses text key input. It has adjustable speed, set number of tests, monitoring of conduction, and can conduct experiments in 2 or 4 workstations. The data will be retained after reaching the set number of tests. This ensures the measurement accuracy.
II. Main Technical Specifications;
1.Power supply voltage: 220V ± 10% 50Hz
2. Total count range: 0 - 99999999 (can be set arbitrarily)
3. Lower moving rod (adjustable)
4. Height adjustment range for the upper pole: 0 - 150 mm
5. Speed adjustment range: 5 - 60 times per minute (adjustable)
6. Machine weight (approximate): 45 kg
8. Test station: 2 groups or 4 groups (as specified by the customer)
9. Each workstation conducts independent counting. If a product is damaged during the test, it will not affect other workstations. Other workstations will continue to operate until the total number reaches a certain limit or all products are damaged and the machine stops.
10. Machine dimensions: Approximately 450*400*600mm
11. Motor power: 90W
12. Conductive wires: 2 sets or 4 sets
13. Weighing weights: A set consists of 100g, 200g, 300g and 500g. Alternatively, you can purchase additional weights as per your requirements.
