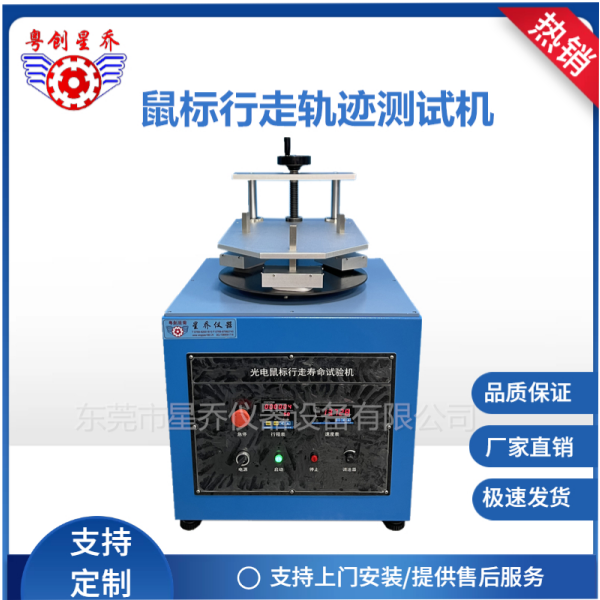

XQ-3261 Mouse Movement Life Testing Machine
I. Overview:
This device simulates the movement of an optical mouse under certain loads, and can observe the mouse's movement trajectory and lifespan. It is suitable for testing the sliding lifespan of the mouse scroll wheel.
II. Characteristics:
The photoelectric mouse testing machine is driven by an AC speed-regulating motor, with a manual pressure control knob and a fixture design.
It can test three mice simultaneously and has three different guide holes; it can meet the requirements of various tests.
III. Technical Specifications:
1. Workstations: 3 groups; equipped with fixed fixtures
2. Testing Method: Electric, drawing circles
3. Pressure: 100 ± 5 gf; force applied by weights
4. Testing Speed: 150 - 250 mm per second can be set
5. Base Plate: Replaceable (pvc board and aluminum board)
6. Testing Travel: 0 - 500 Km can be set (configured in conjunction with the number of tests and rotational speed)
7. Dimensions: Approximately 600 * 600 * 550
8. Weight: Approximately 65 kg
9. Power Supply: AC 220V 50Hz
