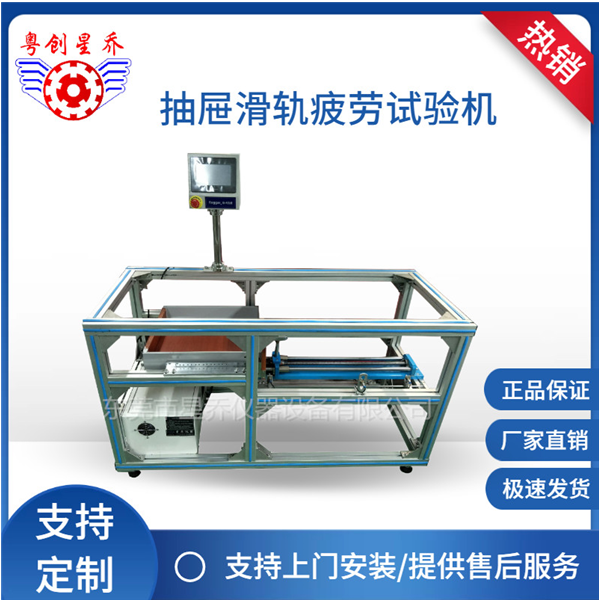

XQ-3189 Electric Drawer Slide Rail Fatigue Testing Machine
I. Application Scope of Electric Drawer Slide Rail Fatigue Testing Machine;
This is used to simulate the fatigue test of a drawer when it is in use. The main process involves installing the guide rails on the left and right fixtures, attaching the drawer body with the required weight, and conducting N times of pulling and pushing back tests. After N times of fatigue tests with a certain extension and retraction stroke, the damage situation is evaluated.
II. Test Standards for Electric Drawer Slide Rail Fatigue Testing Machine;
Test standard QB/T2454-1999 "Furniture Hardware - Drawer Guide Rails - Requirements and Inspection".
III. Main Structure of the Electric Drawer Slide Rail Fatigue Testing Machine;
This machine is equipped with a liquid crystal screen for full Chinese display. It is easy to use and all adjustments are made through numerical control. Features include displacement, speed, frequency, forward/reverse rotation, etc. The hardware consists of a precision servo motor, PLC, and a color touch screen. It has high precision, low noise, and a long service life.
IV. Main parameters of the electric drawer slide rail fatigue testing machine;
1.Test station: 1 station
2. Test speed: Adjustable or specified
3. Stretching distance: Adjustable as needed
4. Distance setting method: Internal screen setting
5. Starting distance: Adjustable as needed
6. Manual function for locating the origin and setting the starting point is available.
7. Adjustable dwell time: 0.1 seconds to 99 seconds, customizable.
8. Internal automatic counter: 1 counter.
9. Maximum load capacity: 0 - 100 kg
10. Counting setting: 0 - 999999 times
11. Volume: (Length * Width * Height) approximately 1230 * 610 * 1200 mm
12. Weight: Approximately 150 kg
13. Power Supply: AC 220V / 50Hz
