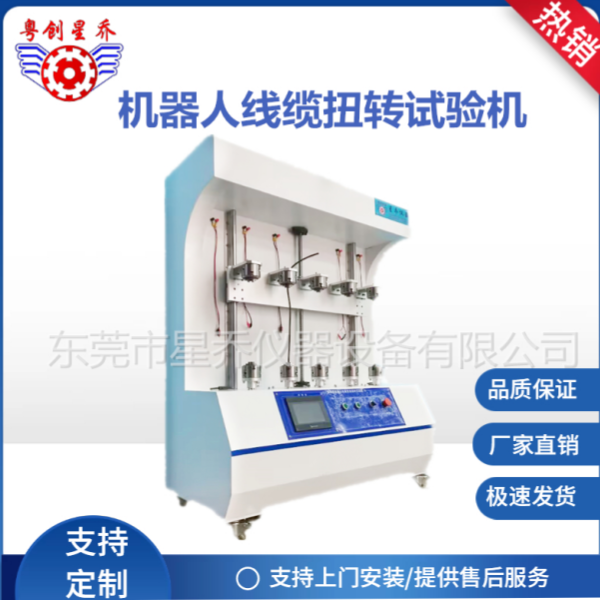

XQ-8099 Robot Cable Vertical Twist Testing Machine (Five-Position)
I. Scope of Application:
II. Compliance with Standards:
The standards of the China Robot Industry Alliance and others, such as CRIA 0003.2-2016 "Specialized Cables for Industrial Robots - Part 2: Test Methods", stipulate the requirements.
III. Main Parameters:
1.Test station: 5 stations
2. Test method: Vertical torsion, with the upper end fixed and the lower end twisted.
3. Maximum diameter of the sample: φ3 - 20mm
4. Sample twisting speed: Adjustable from 0 to 60 times per minute
5. Bending angle: ±180 ° digital setting
6. Distance between the fixture and the twisting point: Adjustable within the range of 50 to 500 mm
7. Control method: Touchscreen control
8. Number of digits: 0 - 99999999 times
9. Machine material: Main body: Constructed with 45# high-quality steel.
