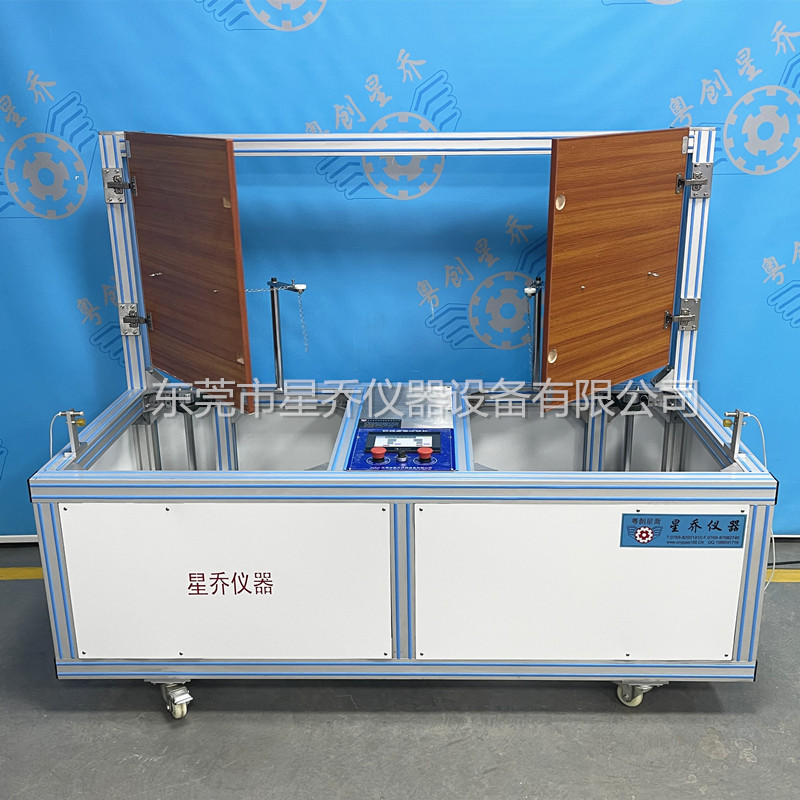

XQ-2632T Hinged Opening and Closing Life Testing Machine
I. Purpose;
This testing machine is suitable for conducting the opening and closing capability life test of doors. The door opening/closing durability testing equipment is applicable to vertical door bodies. It adopts a servo electric drive method or uses a motor with a crank-rocker-sprocket mechanism to push the test door to make 90° reciprocating rotation and 165° testing. (Xingqiao) It uses a motor as the power source to drive the telescopic connecting rod to make reciprocating linear motion or uses the crank-rocker-sprocket mechanism to push the test door to make 90° reciprocating rotation, thereby completing the reciprocating action of "opening and closing" of the cabinet door. The operation is simple and the control is convenient.
II. Technical Specifications;
1.Test station: Second station
2. Test speed: Adjustable
3. Power source: Two sets
4. Standard requirements for door opening and closing cycle: 8 to 15 times per minute (each opening and closing of the door constitutes one cycle)
5. Requirement for setting the number of door openings: The maximum number should be no less than 990,000; any number from 0 to 999,999 can be set.
6. Door height: 600*400*18mm
