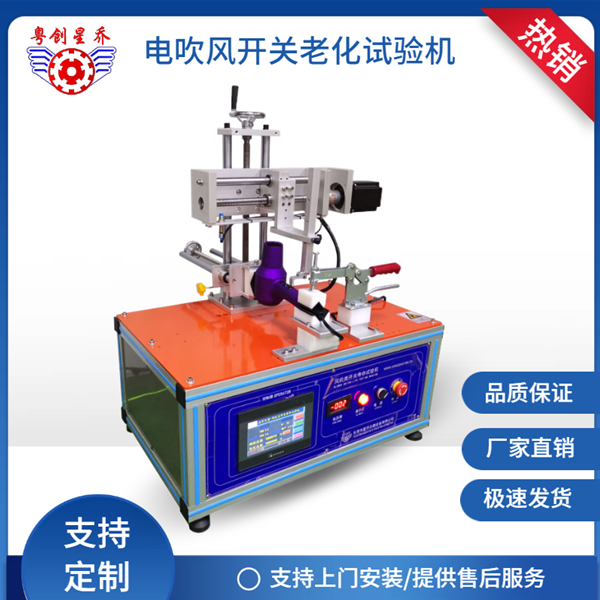

XQ-818C Switch Testing Machine
I. Application scope of the switch testing machine:
The Zhejiang Ship-type Switch Testing Machine is suitable for testing the long-life aging of electrical switches in household appliances, such as hair dryers and other electrical switches, simulating their actual usage. It is used to test the number of aging times and duration, as well as the testing period, of products working under voltage and current for a long time. Zhejiang Ship-type Switch Testing Machine - Switch Button Life Testing Machine Wholesale Price.
II. Main parameters of the switch testing machine:
1. Working power supply: AC 120V/50Hz or as specified by the country.
2. Power: 120W
3. Test speed: Can be set arbitrarily
4. Total number of tests: 1 - 99999
5. Total test distance: Adjustable as needed
6. Gear spacing: Can be set arbitrarily
7. Test gear: As specified by the customer's product.
8. Product origin or starting point: Can be manually set arbitrarily
9. Pause time interval: Arbitrary setting allowed
10. Test Station: For testing a single product
11. Zhejiang Ship-Type Switch Testing Machine - Switch Button Lifespan Testing Machine - Wholesale Price
III. Advantages of the Switch Testing Machine Product:
1.This machine can test the aging of the switch of the hair dryer product. All the front, back, left and right switches can be tested.
2. It can achieve monitoring of the airflow voltage of the electric fan.
3. You can set any time, and the speed will automatically complete the test.
4. It can monitor the current and voltage at each level.
5. The product can automatically identify when it has suffered several levels of mechanical damage.
IV. Structure of the Switch Testing Machine:
1.This machine adopts an aluminum profile + imported stainless steel box structure.
2. The controller is controlled by an intelligent 7-inch color touch screen.
3. The hardware is designed using a combination of precision servo motors, servo drivers, PLC and touch screens, featuring high precision, low noise and long lifespan.
4. The appliances are of the Yijia brand.
V. Operating Method of Switch Testing Machine:
1. First, fix the test product onto the test fixture.
2. Enter the intelligent control page and set the required values.
3. According to the customer's requirements, set the speed and frequency.
4.After the mechanical test is completed, the machine will automatically stop and the data will be automatically saved.
VI. Precautions for the Switch Testing Machine:
1.Before starting the switch testing machine for the test, please ensure that the machinery is properly grounded.
2. When installing the sample, make sure that the product is securely fixed. If any looseness is found, tighten it before conducting the test.
3. The mechanical transmission parts must be maintained regularly and cleaned thoroughly.
4. After the test is completed, it is necessary to ensure that the power supply has been turned off.
5. It is strictly prohibited to use auxiliary corrosive liquids to clean the machine. Instead, rust preventive oil must be used.
6. The switch testing machine must be used exclusively by one person. The machine must not be knocked on or occupied by anyone.
7. Zhejiang Ship-Type Switch Testing Machine - Switch Button Lifespan Testing Machine - Wholesale Price
