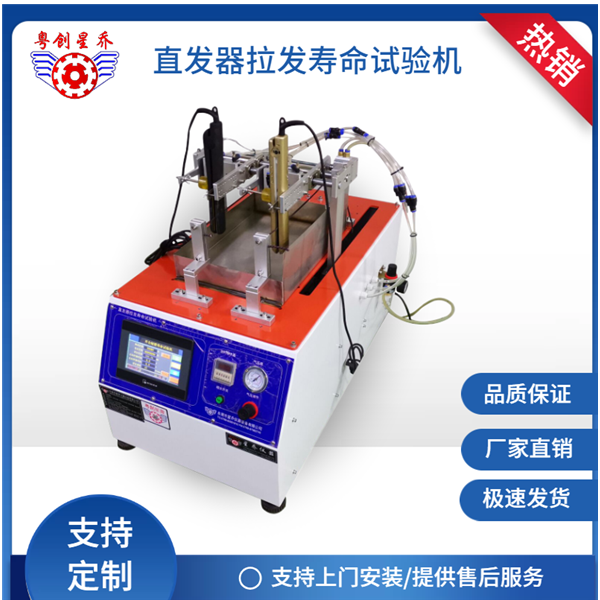

XQ-837-4P Straight Hair Pulling Life Testing Machine
I. Application scope of the straightener testing machine:
This product is used to simulate the pulling of artificial hair; it is used to calculate or test the pull-resistant lifespan and performance of hair clips; it is also used to develop and test experiments for the wear of hair clips, spray blocks on straightening plates, and the lifespan of circuit boards. It is an indispensable development and testing instrument for manufacturers of electrical straightening devices and curling irons.
II. Main parameters of the straightener testing machine:
1.Test station: Second station or Fourth station (as per customer requirements)
2. Fixture: Two sets or four sets (as per customer requirements)
3. Test travel distance: 300MM (can be set arbitrarily)
4. Speed range: Adjustable from 1 to 20 times per minute.
5. Working power supply: AC 220V/50Hz or as specified.
6. Power: 300W
7. Weight: Approximately 280 kilograms
III. Advantages of the Straightener Testing Machine:
1.This testing machine is suitable for testing the pulling lifespan of hair straighteners, curling irons, hair clamps, etc.
2. Speed can be set arbitrarily.
3. The number of times can be set arbitrarily.
4. The itinerary can be freely customized.
5. Depending on the type of test sample, the test fixtures do not need to be replaced.
6. Intelligent touch screen control.
7. It is equipped with two or four water spray devices, and the spray time can be set according to the requirements.
IV. Structure of the Straightening Iron Testing Machine:
1.This testing machine is of box-type structure.
2. The surface is made of high-temperature resistant enamel paint.
3. Intelligent touch screen control.
4. The hardware is equipped with imported servo system and imported precision ball screw.
V. Operation Method of Hair Dryer Testing Machine:
1. First, fix the product onto the universal fixture.
2. Then, install the test wig onto the fixture.
3. After fixing the product and the wig, check to ensure that the sample is properly fixed and installed in the correct position.
4. This machine is connected to the power supply and is in an operational state.
5. Enter the intelligent operating system and set the desired values.
6. Once the required value is reached, the machine will automatically stop operating. You can directly observe the test data.
VI. Notes for the Straightener Testing Machine:
1.Before starting the straightener test machine for the test, please make sure that the power is connected correctly.
2. When installing the product, make sure that the bracket is not loose with any screws or similar issues. If any looseness is found, it must be tightened before conducting the test.
3. When testing the operation status of the hair straightener machine, it is strictly prohibited to hold the test piece with your hands.
4. The mechanical transmission parts must be maintained regularly and lubricating oil must be added at regular intervals.
5. After the test is completed, it is necessary to ensure that the power supply has been turned off.
6. It is strictly prohibited to use auxiliary corrosive liquids to clean the machine. Instead, rust preventive oil must be used.
7. The straightening machine must be used exclusively by one person. The machine must not be knocked on or occupied by anyone.
8. The mechanical part of the hair straightener testing machine must be grounded.
