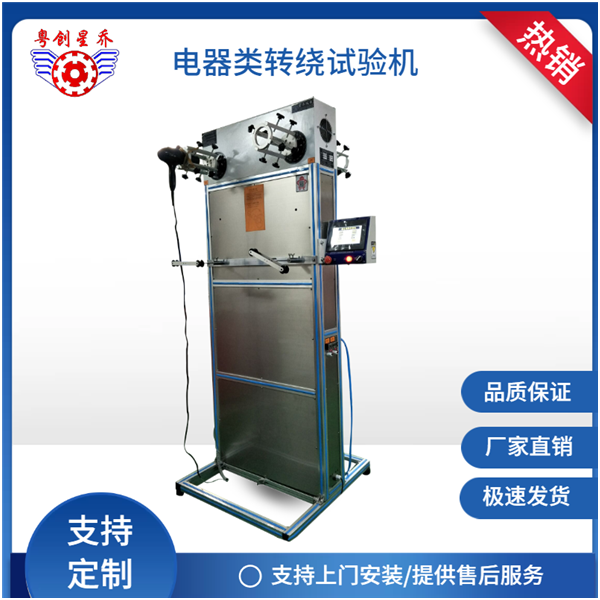

XQ-817-4R Hair Dryer Rotating Test Machine
1. Application scope of the hair dryer rotating testing machine:
The curling iron winding test machine is used to simulate a winding test that a person performs when winding the power cord around the product itself. It is suitable for manufacturers and quality inspection departments to conduct weight rotation tests on the connection parts of small household appliances such as hair dryers, hair clips, power cords, straightening irons, curling irons, and wires. The wire tail winding test machine is available for wholesale. The test principle of the tail winding test machine. The manufacturer of the wire tail winding test machine.
II. Main parameters of the hair dryer winding testing machine:
1. Working power supply: AC 120V/50Hz or as specified
2. Power: 600W
3. Test speed: Adjustable from 0 to 60 times per minute.
4. Bending and twisting angle: 6 turns on each side or adjustable from 0 to 9999.9°
5. Angle measurement method: Set through the intelligent touch screen
6. Starting angle: Adjustable from 0° to 360°
7. Positioning and Limiting Guide Rods: 4 sets
8. Manual function for locating the origin and setting the starting point is available.
9. Wire tail reversing test machine for wholesale at cost price. Test principle of tail reversing test machine. Manufacturer of power cord tail reversing test equipment.
III. Advantages of the Hair Dryer Torsion Testing Machine:
1.The hair dryer testing machine can test 4 products at one time.
2. The hair dryer winding testing machine is divided into two groups, and each group is independently controlled.
3. The controller is equipped with an imported 7-inch touch screen.
4. The test angle can be set arbitrarily.
5. The drive system employs imported servo motors and servo drives.
6. Manufacturers of curling iron tail-turning testing machine. Wholesale price of curling iron winding testing machine.
IV. Structure of the Hair Dryer Rotating Test Machine:
1.The entire machine is constructed by combining an aluminum frame with imported stainless steel plates.
2. The motor is controlled by an imported servo system.
3. The control panel is equipped with a 7-inch large screen imported from Taiwan.
4. Wire tail reversing test machine for wholesale at cost price. Test principle of tail reversing test machine. Manufacturer of power cord tail reversing test equipment.
V. Operation Method of Hair Dryer Torsion Testing Machine:
1.Fix the product onto the test fixture.
2. Hang different weights of weights as per the requirements.
3. Enter the intelligent touch control mode and set the desired test values.
4. Once the test data is reached, the machine will automatically stop.
VI. Notes for the Hair Dryer Rotation Testing Machine:
1.Before conducting the test on the hair dryer rotating testing machine, please ensure that the machine is properly grounded.
2. When installing the sample, make sure that the product is securely fixed. If any looseness is found, tighten it before conducting the test.
3. The mechanical transmission parts must be maintained regularly and cleaned thoroughly.
4. After the test is completed, it is necessary to ensure that the power supply has been turned off.
5. It is strictly prohibited to use auxiliary corrosive liquids to clean the machine. Instead, rust preventive oil must be used.
6. The hair dryer testing machine must be used exclusively by one person. The machine must not be knocked on or occupied by anyone.
7. Wire Tail Reversal Testing Machine for Wholesale in Stock. Testing Principle of Tail Reversal Testing Machine. Manufacturer of Power Cable Tail Reversal Testing Equipment.
