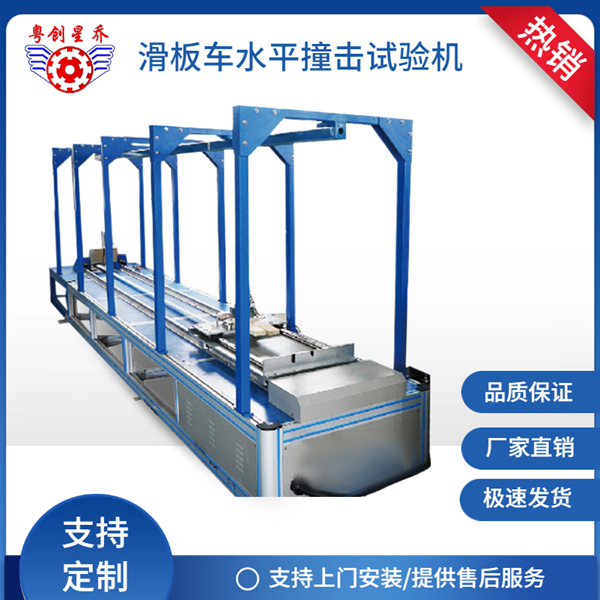

XQ-2019 Skateboard Vehicle Horizontal Impact Testing Machine
I. Application Scope of the Skateboard Vehicle Horizontal Impact Testing Machine：
This machine is used to test whether the wheels or brakes of a skateboard vehicle are damaged after being impacted by an external object. During the test, a certain load and speed are applied to a steel plate to check the damage of the skateboard vehicle. It is controlled by intelligent touch-type PLC, and the number of tests can be set arbitrarily, and the speed can be selected arbitrarily. The guide rails are thickened, and the collision parts are also thickened.
II. Test Standards of the Skateboard Vehicle Horizontal Impact Testing Machine：
Complies with EN71; EN13899: 2003, EN13843: 2003, GB20096-2006 standards.
III. Main Parameters of the Skateboard Vehicle Horizontal Impact Testing Machine：
1. Test speed: 1-5m, can be selected arbitrarily.
2. Weight: According to the standard. The weight of the small iron man should comply with the FC2664/7.6 curb influence test standard (91kg).
3. Speedometer: 7-inch true color touch screen display (and provides calibration speed parameters).
4. Motor power: Servo motor 1.5KW.
5. Machine size: Approximately 4830X660X1010mm, length x width x height.
6. Weight: Approximately 580KG.
7. Power supply: AC220V 50HZ.
IV. Operating Procedures of the Skateboard Vehicle Horizontal Impact Testing Machine：
1. First, fix the product on the testing fixture.
2. After fixing the product.
3. Power on the machine, set the required test values, and the machine conducts the test.
4. When reaching the test value, the machine automatically stops, and the test result is displayed intuitively.
V. Precautions of the Skateboard Vehicle Horizontal Impact Testing Machine：
1. Before conducting the test, please ensure that the power supply is correctly connected or plugged in.
2. Before the test, ensure that the product is installed and fixed properly.
3. The transmission parts of the machine must be regularly maintained.
4. After the test, make sure to turn off the power supply.
5. The machine must not be wiped with corrosive liquids or substances. Anti-rust oil must be selected.
6. This testing machine must be used by a dedicated person. During the test, the machine must not be knocked or people are not allowed to stand on it.
7. The machinery must be grounded.
