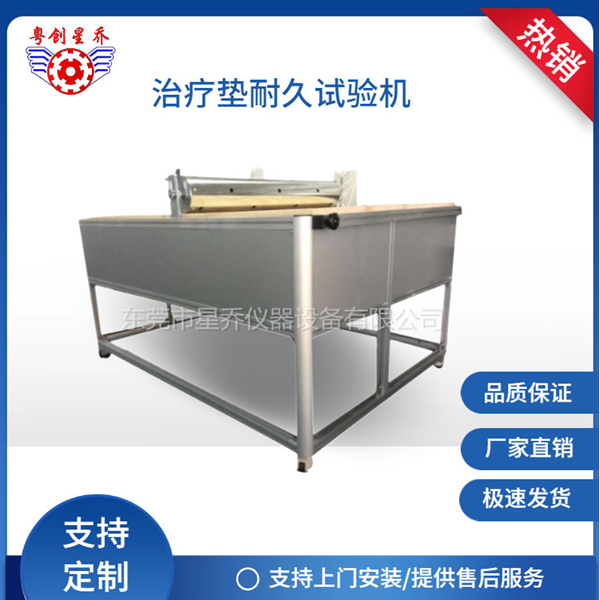

XQ-205 Treatment Pad Durability Testing Machine
I. Scope of Application of the Durability Test Machine for Treatment Pads;
It is used to conduct the bending test on the treatment pad after applying gravity.
II. Advantages of the Treatment Pad Durability Testing Machine;
The floor-standing luxury design features high-end aluminum alloy structure, equipped with a speed regulating motor and reducer, along with control components and a counter. Once the preset number of rotations is completed, the machine will automatically stop and give an alarm to alert. This machine has the advantages of simple structure, convenient operation, and easy installation of test samples.
III. Main parameters of the treatment pad durability testing machine;
1. Working power supply: AC 220V ± 10% / 50Hz 10A
2. Power: < 1500W
3. Bending speed range: approximately 125 mm/s;
4. Diameter of the horizontal roller: 25mm;
5. Counting range: 1 - 999999 (digital display, programmable)
6. Position: 1 position
7. Force application: 0.5 kg or 3 g/mm;
8. Sample size: Approximately 1.9m × 0.9m
IV. Operating Procedures for the Durability Test Machine for Treatment Pads;
1. First, fix the product onto the testing fixture.
2. The machine is powered on, the main power supply is turned on, and it enters the parameter setting mode.
3. Set the required values according to the test requirements.
4. Conduct the experiment by starting the machinery. Once the required value is reached, the machinery will automatically stop.
V. Precautions for the Durability Test Machine for Treatment Pads;
1.Before conducting the test, please make sure that the power supply is properly plugged in or connected.
2. Before conducting the test, make sure that the product is properly installed and fixed.
3. The mechanical transmission parts must be maintained regularly.
4. After the test is completed, it is necessary to ensure that the power supply has been turned off.
5. It is strictly prohibited to use secondary corrosive liquids to clean the machine. Instead, rust preventive oil must be used.
6. This testing machine must be used exclusively by one person. During the testing process, it is strictly prohibited to strike the machine or have anyone stand near it.
7. The machinery must be grounded.
