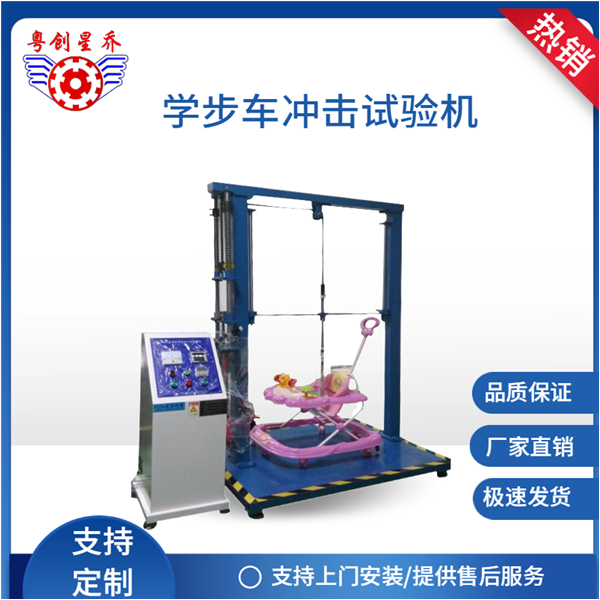

XQ-1474 Frame Impact Testing Machine
I. Application scope of the frame impact testing machine:
This testing machine is suitable for strength tests of the seats and frame structures of baby walkers. Compliance with standards: GB 14749. Test frequency: 0 to 999, can be set arbitrarily up to 999, and the test results will be automatically retained.
II. Main parameters of the frame impact testing machine:
1. Counter: Can be set from 0 to 999999, automatically retains test results
2. Impact height: 801 (mm)
3. Weight: 12kg model
4. Power source: Air source
5. Air source: 5kgf/cm
6. Power supply: 220V 50HZ
7. Test table surface: 1000*1000mm
8. Testing speed: Adjustable from 0 to 500 mm per minute
III. Advantages of the Frame Impact Testing Machine:
1.This testing machine is suitable for various impact tests on child car frames.
2. The test height can be adjusted.
3. The weight of the drop hammer can be customized according to customer requirements.
4. This testing machine can be equipped with different control systems according to customer requirements.
IV. Structure of the Frame Impact Testing Machine:
1.This testing machine is of a frame structure.
2. The test bench and the control system are separate units.
3. The mechanical components are made of steel structure.
4. The surface is treated with high-temperature resistant enamel coating.
5. The impact type is an automatic drop hammer type.
V. Operating Procedures for Frame Impact Testing Machine:
1. First, fix the test product on the test platform.
2. After fixing the product, connect the gas source and turn on the main power supply.
3. Set the required values and conduct the mechanical startup test.
VI. Notes for the Frame Impact Testing Machine:
1.Before conducting the impact resistance test, please ensure that the power supply is correctly plugged in or connected.
2. When starting the impact resistance testing machine, make sure that the bracket is not loose with any screws or similar issues. If any looseness is found, it must be tightened before conducting the test.
3. When the impact resistance testing machine is in operation, it is strictly prohibited to press and move the driving disc with your hands.
4. The mechanical transmission parts must be maintained regularly and lubricating oil should be added.
5. After the test is completed, it is necessary to ensure that the power supply has been turned off.
6. The machine of the impact resistance testing machine must not be wiped with any corrosive liquid substances. Instead, rust-proof oil should be used.
