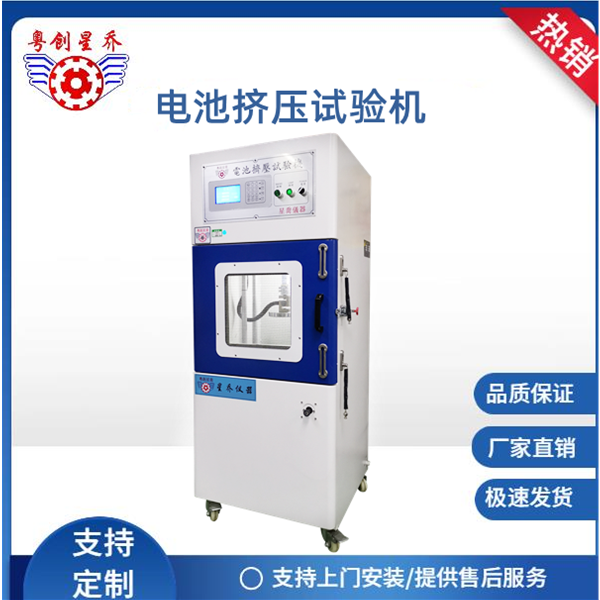

XQ-6045DA Battery Compression Testing Machine
I. Application scope of the battery compression testing machine;
The hydraulic lithium battery compression testing machine simulates various situations where power lithium batteries are subjected to compression during use. It artificially presents the different conditions that may occur when the battery is compressed. This machine is controlled by a microcomputer. Its features include the ability to retain values, the capacity to store 12 sets of test values, and a delay function.
II. Test standards for battery compression testing machine;
GB/T 31241-2014, UN38.3, IEC62133, QC/T743-201X, GB/T 8897.4-2008, GB/T 21966-2008, YD 1268-2003
GB/T 19521.11-2005, YDB 032-2009, UL 1642:2012, UL 2054: 2012, IEC 62281: 2004.
III. Main parameters of the battery compression testing machine;
1.Battery compression testing machine
2. Compression method: Hydraulic system
3. Pressure: 13 KN (as per the standard)
4. Unit Conversion: Kg, N, Lb can be converted freely.
5. Time setting range: 1 second - 60 seconds (or as specified)
6. Force control method: Adjusting the hydraulic pressure level for control
7. Visual window: 300 x 300 mm explosion-proof glass window
8. Exhaust Port: At the bottom of the rear side of the box, there is an exhaust fan installed.
9. Base: Equipped with 4 lockable universal wheels, allowing for both free movement and positioning.
10. Control method and features: Digital display using LED.
11. Voltage used: 380V ± 10% 50Hz
12. Explosion-proof box dimensions: 1300X600X800mm (Height x Width) Double-layer explosion-proof box
13. Power: 1.5KW
IV. Advantages of the Battery Compression Testing Machine;
1.This machine is equipped with a double-layer protective enclosure, making it more convenient and safer to use.
2. The interior of the box is equipped with LED high-temperature-resistant and explosion-proof lights, which are energy-efficient and safe.
3. The control section is operated by a microcomputer, ensuring accurate atmospheric data.
4. The test pressure plate is made of hardened steel structure.
V. Operating Procedures for Battery Compression Testing Machine;
1. First, the machine is powered on and then the micro-control software is accessed.
2. After setting the required values, place the product in the test area and lock the protective cover.
3. Conduct the test.
VI. Notes for Battery Compression Testing Machine;
1.Before conducting the test, please make sure that the power supply is properly plugged in or connected.
2. When conducting the test, make sure that the limit protection switch is securely fixed.
3. The mechanical transmission parts must be maintained regularly.
4. After the test is completed, it is necessary to ensure that the power supply has been turned off.
5. It is strictly prohibited to use auxiliary corrosive liquids to clean the machine. Instead, rust-proof oil must be used.
6. This testing machine must be used exclusively by one person. The machine must not be knocked on or occupied by anyone.
7. The machinery must be grounded.
