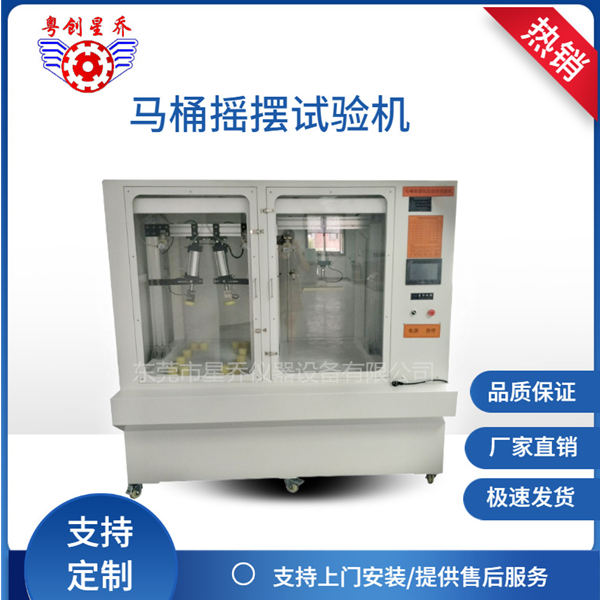

XQ-C87 Toilet Swing Testing Machine
I. Application scope of the toilet swaying testing machine：
Used for life tests of toilet seats and lids, including compression and oscillation tests; it can test: oscillation test; compression test, etc.
II. Test standards for toilet swaying testing machine：
According to the standard: JCT 764-2008, 5.4.2, 6.7: Appendix A Swing Test of Toilet Cover; Strong Pressure Test of Toilet Cover.
III. Main parameters of the toilet swing testing machine：
1. Test positions: Two positions
2. Testing functions: Swinging test and toilet lid compression test
3. Capable of conducting strength, time and frequency tests.
4. Time setting range: 0 - 99999 seconds
5. Pressure adjustment method: Digital display
6. Number of settings range: 0 - 999999 times
7. Load pressure: According to standard requirements
8. Static load pressure: According to standard requirements
IV. Features of the toilet swaying testing machine：
1.The equipment is equipped with an independent protective cover, which is safe and aesthetically pleasing.
2. The equipment door can be opened independently both forwards and backwards, facilitating the installation of products.
3. The equipment features a transparent observation window, ensuring safety and reliability.
4. Intelligent design, high-precision electrical signal sensors, compared with mechanical instruments, the system accuracy has been greatly improved;
5. Adopting digital module technology, it has the function of setting force for hold control, the system is stable and reliable, and has high controllability.
V. Operating Procedures for Toilet Swing Testing Machine：
1. First, fix the product onto the testing fixture.
2. After fixing the product.
3. The machine is powered on, the required test values are set, and the machine then conducts the test.
4. Once the test value is reached, the machine will automatically stop, and the test result will be displayed clearly.
VI. Precautions for the Toilet Swing Testing Machine：
1.Before conducting the test, please make sure that the power supply is properly plugged in or connected.
2. Before conducting the test, make sure that the product is properly installed and fixed.
3. The mechanical transmission parts must be maintained regularly.
4. After the test is completed, it is necessary to ensure that the power supply has been turned off.
5. It is strictly prohibited to use auxiliary corrosive liquids to clean the machine. Instead, rust preventive oil must be used.
6. This testing machine must be used exclusively by one person. During the testing process, it is strictly prohibited to strike the machine or have anyone stand near it.
7. The machinery must be grounded.
