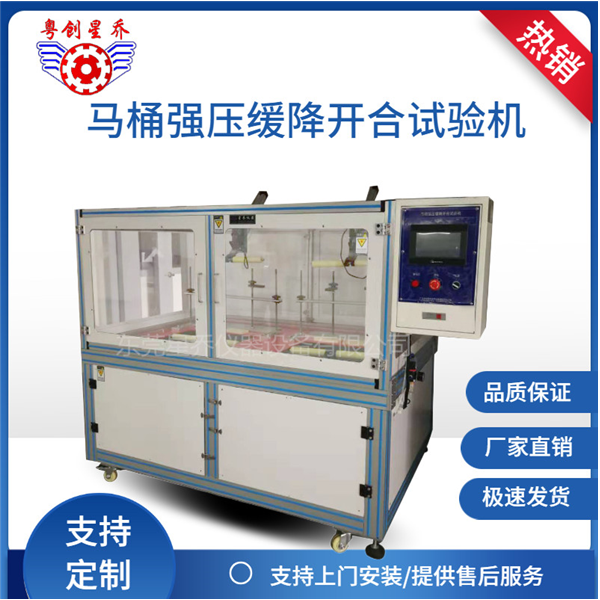

XQ-686 Intelligent Toilet Seat Cover Testing Machine
I. Application Scope of Intelligent Toilet Seat Testing Machine：
It is specifically designed for the lifespan tests of the seat and lid of the toilet, including opening and closing, slow descent, strong pressure, and swaying tests, etc., and complies with relevant requirements of domestic standards. The toilet lid lifespan testing machine test system has high accuracy and automation level, and can provide various sample test conditions. It is suitable for use by manufacturing companies, research institutions, universities, quality inspection units, etc.
II. Test Principle of Intelligent Toilet Seat Cover Testing Machine:
Simulates the opening and closing actions of a toilet lid. Before the test, parameters can be set. It has the function of setting the return and stay time, achieving the effect of stress elimination, providing a more realistic test.
III. Main parameters of the intelligent toilet seat tester：
1. Time setting range: Can be set arbitrarily
2. Number of tests: Can be set arbitrarily
3. Pressure regulation method: Manual
4. Load pressure: According to standards
5. Switching frequency of the photoelectric sensor: 100Hz
6. The equipment has an independent protective cover, which is safe, beautiful and elegant.
7. The equipment door can be opened independently both forwards and backwards, facilitating the installation of products.
8. The equipment features a transparent observation window, ensuring safety and reliability.
9. The equipment is equipped with movable horizontal casters, making it easy to move.
IV. Test Standards for Intelligent Toilet Seat Covers Testing Machine：
JCT 764-2008: Toilet lid opening and closing test; Toilet lid slow descent function lifespan test.
V. Operating Procedures for Intelligent Toilet Seat Testing Machine：
1. First, fix the product onto the testing fixture.
2. After fixing the product.
3. The machine is powered on, the required test values are set, and the machine then conducts the test.
4. Once the test value is reached, the machine will automatically stop, and the test result will be displayed clearly.
VI. Notes for the Intelligent Toilet Seat Tester：
1.Before conducting the test, please make sure that the power supply is properly plugged in or connected.
2. Before conducting the test, make sure that the product is properly installed and fixed.
3. The mechanical transmission parts must be maintained regularly.
4. After the test is completed, it is necessary to ensure that the power supply has been turned off.
5. It is strictly prohibited to use auxiliary corrosive liquids to clean the machine. Instead, rust preventive oil must be used.
6. This testing machine must be used exclusively by one person. During the testing process, it is strictly prohibited to strike the machine or have anyone stand near it.
7. The machinery must be grounded.
