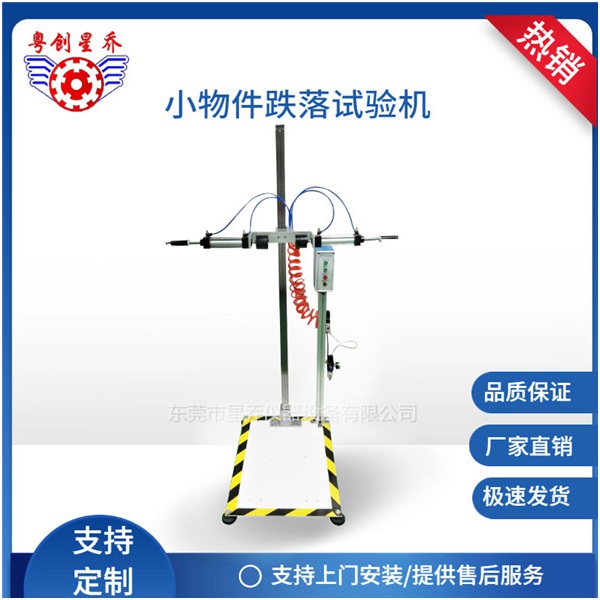

XQ-1500 Manual Small Object Drop Test Machine
I. Overview of This Machine:
This machine is suitable for free drop tests of small consumer electronic products such as mobile phones, walkie-talkies, electronic dictionaries, digital intercom phones, CD/MD/MP3 players, small hardware items and various connecting parts. The applicable standards are JISC0044 and IEC60068-2-32. This machine uses stainless steel and hardened material tubes as the manual lifting structure. When adjusted to a certain height, it can be manually freely locked. The fixture is equipped with dedicated drop and clamping cylinders to achieve free drop and clamping. The electronic speed motor has stable performance and the cylinder has a long service life and durability.
II. Main Technical Parameters:
1.Maximum allowed weight of the test piece: 10kg ± 10g
2. Fixture cylinder: 2 pieces
3. Fixture range: Adjustable from 0mm to 300mm
4. Dropping and clamping method: Cylinder + manual adjustment control
5. Effective fall height: 300 - 1500mm (or as specified)
6. Drop height scale: Steel ruler, minimum indication: 1mm
7. Floor impact material: Steel plate (standard configuration)
8. Drop range: 500 * 600 mm
9. Air pressure: 0.5 MPa
10. Machine dimensions: Approximately W500*D800*H1700mm
11. Machine weight: 80kg
III. Our Company's Specialized Research and Sales Focus:
Table strap electronic product testing machines, photovoltaic component testing machines, cooking utensil and kitchenware testing machines, hair dryer and hair straightening rod direct hair styling machine, electric toothbrush testing machines, electric heating blanket and mattress testing machines, industrial wheels and universal wheels testing machines, scooter and niao-niao bike testing machines, environmental testing machines, furniture and home appliances testing machines, switch pulling and light touch switch button switch testing machines, mechanical testing machines, lithium battery and power battery testing machines, wheelchair and vehicle testing machines, door hinge and hinge plate testing machines, telescopic and stretching fatigue testing machines, acoustic testing machines, mobile phone and tablet computer testing machines, baby car seat and child car seat testing machines, vibration table, smart toilet testing machines, notebook hinge shaft testing machines, bicycle and electric vehicle testing machines, micro motor comprehensive testing machines. Testing machines can be customized according to customer requirements.
IV. Company's Commitment and Warranty Services：
Thank you all for your continuous support and recognition of our Starjoy Company. Therefore, I would like to assure you that for all products ordered from our company, regardless of their size, starting from the delivery and shipping date of your order, you will enjoy a one-year warranty-free service, free on-site training, free on-site repair, and finally free on-site maintenance.
Beyond the warranty period; if there are minor mechanical issues, our company will waive the cost of spare parts. For components with higher costs, our company will only charge the cost of the spare parts, and the lowest cost for on-site service personnel.
Out-of-province service: For customers who order products outside of the province, our company will use well-known and reliable logistics companies to deliver the products you ordered to your hands (the freight charges and wooden box fees will be borne by our company). If any accessories are damaged during transportation, our company will replace them with brand-new ones without conditions, and ensure that the mechanical performance remains intact. If the mechanical damage is severe enough to prevent the machine from operating, our company will promise to provide free factory repair services, and the round-trip freight charges and wooden box fees will be borne by our company.
Regarding the use of machinery from outside the province: On the day of the machinery shipment, our company will randomly send the relevant product operation manuals, delivery notes, receipts, certificates of conformity, and internal inspection reports to the customer together with the machinery. The manuals provide detailed descriptions of the operation procedures for each part of the machinery. For complex machinery, we offer corresponding training videos and on-site training services.
