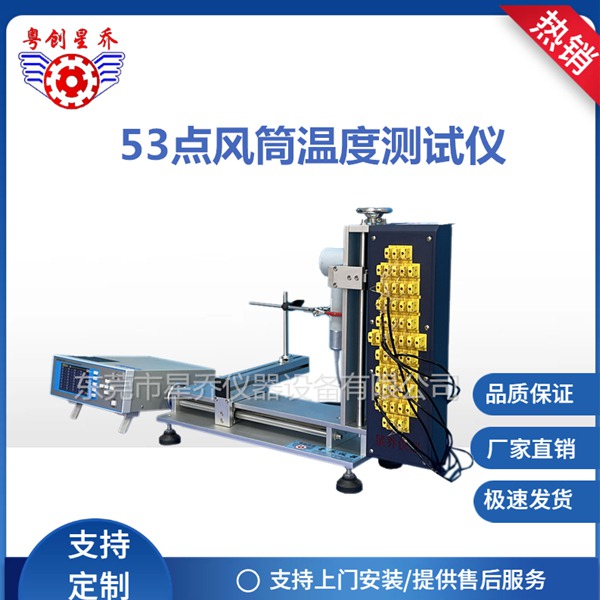

XQ-535 53-point air duct temperature measuring instrument
I. Purpose:
The 53-point blower temperature measuring instrument is a professional testing device for electric blowers (blow tubes) in operation. It complies with the requirements of UL859 safety standards. By installing the system in a computer and connecting it to the RS-232/485 interface, the data can be tested through the interface panel.
The 53-point air duct temperature measuring instrument features a WINDOW interface design, which is easy to use. When purchasing the system, the related software will be included. Using the software, you can start the test to obtain the test data, and perform real-time demonstration, analysis of the data, and it can be used for 24-hour automatic testing.
The data acquisition instrument of the air duct temperature measuring device has the feature of being able to collect temperature data for up to 56 points simultaneously. The customer can conduct various chart analyses, data collection, display of the five hottest temperature positions and average value of the air duct, as well as view the temperature display of the entire test surface through the computer.
