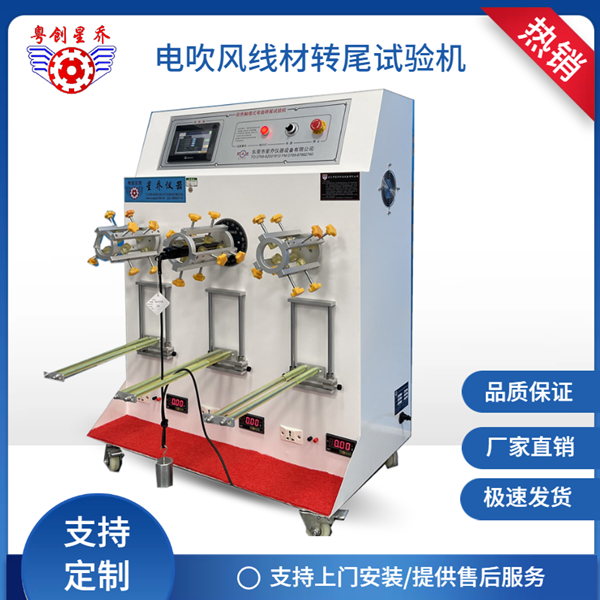

XQ-817C-3 Power Cord to Tail Testing Machine
1. Application scope of the curling iron tail rotation testing machine:
This is applicable for testing the power cords of plugs and for the quality inspection departments of relevant manufacturers to conduct the tail-turn test on the power cords at the tail end of small household appliances, such as hair dryers, hair clips, etc. This test involves hanging weights and twisting/bending the wires at the connection points. The standard for the bending test of power cords by the plug line bending testing machine in Zhejiang is HOT power cord tail-turn testing machine.
II. Main parameters of the curling iron tail rotation testing machine:
1. Working power supply: AC 220V/50Hz
2. Power: 750W
3. Test rate: Adjustable from 5 to 60 times per minute
4. Speed and accuracy: ±2 times per minute
5. Rotation angle: Can be set arbitrarily within the range of 0 - 7200°
6. Angle accuracy: ±2°
7. Standard weights: 1 set
8. Testing station: Three stations, five stations or six stations can be synchronized.
9. Zhejiang Plug Cable Bending Testing Machine - Standard for Hot Power Cable Tail Turning Test Machine
III. Advantages of the Hair Curling Iron Tail Rotation Testing Machine:
1.This machine features a high-end color touch screen with full Chinese display. It is easy to use and operates quickly.
2. Intelligent automatic setting of frequency.
3. Intelligent automatic detection of signal on/off and shutdown.
4. Automatically sets the angle intelligently.
5. Automatically set the speed.
6. According to the customer's requirements, lift weights of different weights.
7. Starjoy manufacturer of wire bending testing machine; Direct sales of electrical wire material tail-turn testing machine.
IV. Structure of the Curly Hair Wand Tail Rotation Testing Machine:
1.This machine adopts a box-type structure.
2. The surface is treated with high-temperature resistant enamel coating.
3. The hardware is composed of servo motors, servo drivers, PLC and a color touch screen. It features high precision, low noise and long lifespan.
4. The lifting weights are electroplated with steel and can be freely stacked to increase the load.
V. Operation method of the curling iron tail turning machine:
1.Fix the test product onto the test fixture.
2. Enter the intelligent control page and set the required values.
3. According to the customer's requirements, different weights of weights will be configured.
4.After the mechanical test is completed, the machine will automatically shut down.
VI. Notes for the Curly Hair Wand Tail Rotation Testing Machine:
1.Before conducting the wire end-turning test, please ensure that the machine is properly grounded.
2. When installing the sample, make sure that the product is securely fixed. If any looseness is found, tighten it before conducting the test.
3. The mechanical transmission parts must be maintained regularly and cleaned thoroughly.
4. After the test is completed, it is necessary to ensure that the power supply has been turned off.
5. It is strictly prohibited to use auxiliary corrosive liquids to clean the machine. Instead, rust preventive oil must be used.
6. The wire splicing testing machine must be used exclusively by one person. The machine must not be knocked on or occupied by anyone.
7. Zhejiang Plug Cable Bending Testing Machine, HOT Power Cord Tail Swivel Testing Machine Standard
