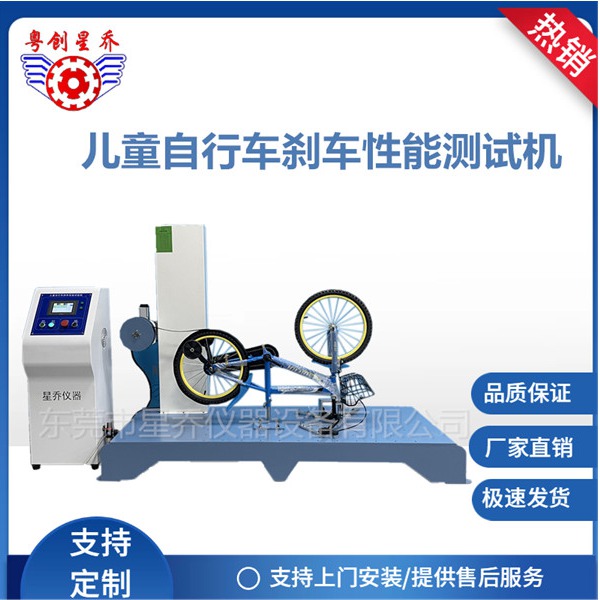

XQ-1801 Children's Bicycle Brake Performance Testing Machine
I. Introduction to the Children's Bicycle Brake Performance Testing Machine:
The children's bicycle brake performance tester is used to measure the braking force produced by different braking systems of children's bicycles at a certain speed.
II. Technical Parameters of the Children's Bicycle Brake Performance Testing Machine:
1.Force application range: 0 - 2000N
2. Accuracy of force: ≤ ±0.5%
3. Pressurization stroke: 0 - 400mm
4. Displacement accuracy: ≤ ±0.1mm
5. Sensor resolution: 1/100,00
6. Structure: The test speed can be arbitrarily set: 0 - 10 m/s. It is a dual-closed-loop system and the current speed and braking distance are displayed in real time.
7. Setting method: Input via computer keyboard
8. Control method: Computer automatic control
9. Data storage method: Hard disk
10. Display data: speed, force, time, braking displacement
11. Report Generation: Automatically generated by the computer
12. Power source: 750W DC brushless motor, with dual closed-loop speed control
13. Automatic saving upon power loss. Users can choose to halt operation or continue working.
14.According to standards: GB14746-2006; ISO8098; EN14765
