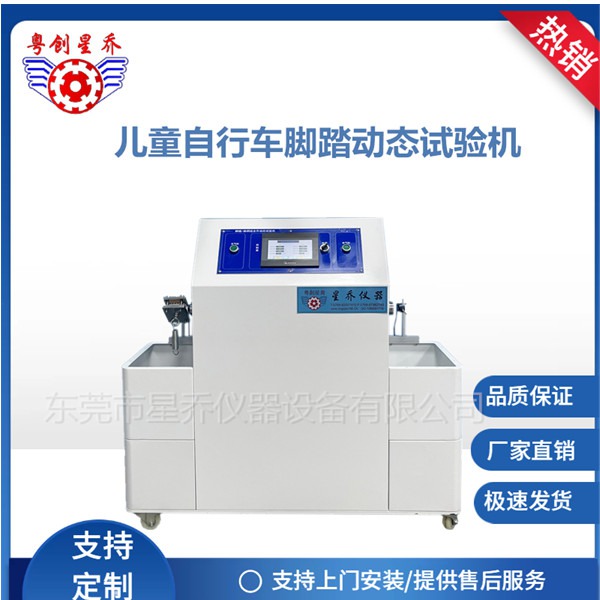

Dynamic testing machine for the pedal crank assembly of children's bicycles
1. The purpose of the bicycle pedal crank assembly dynamic testing machine:
This device is used to simulate the wear of the pedal crank assembly of a child's bicycle during riding. It can conduct tests on two pairs of pedals simultaneously, and each pedal has independent counting. Once any pedal is damaged, the machine will stop the test and counting for that pedal and retain the results.
II. Bicycle pedal crank assembly dynamic testing machine is based on the standard: GB 14746
III. Technical parameters of the dynamic testing machine for the bicycle pedal crank assembly:
1.Test station: 2 stations;
2. Loading load: 20 kg per pedal;
3. Sample: Crank and pedal assembly;
4. Test speed: Adjustable from 0 to 100 revolutions per minute;
5. Counting: The count can be set from 0 to 9,999,9999 times.
6. Number of tests: Can be set from 1 to 99,999,999 times;
7. Controller: PLC + touch screen control;
8. Dimensions (Width x Depth x Height): Approximately 1200 x 500 x 1100 mm;
9. Weight (approximate): 300 Kg;
10. Power Supply: AC 220V/50Hz, 2kw.
