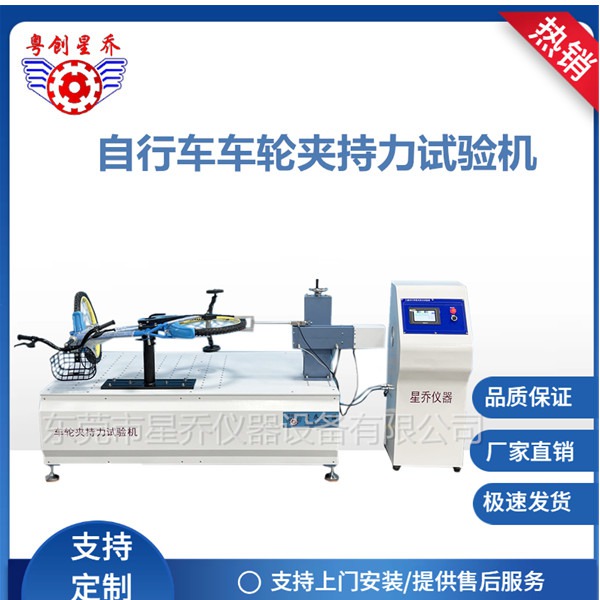

XQ-1803 Bicycle Wheel Clamping Force Testing Machine
I. Product Introduction of Wheel Clamping Force Removal Testing Machine:
The wheel detachment force testing machine is used to measure the minimum disassembly torque of the wheel axle nuts of children's bicycles. For the front wheel or rear wheel disassembly force direction, a certain force is applied symmetrically, and after maintaining for 30 seconds, it is checked whether there is any relative displacement.
II. Design Standards for Wheel Clamping Force Release Testing Machine:
GB 14746, JIS D9301, QB 2176, GB 3565, etc.
III. Main technical parameters of the wheel clamping force removal testing machine:
1.Load cell capacity: 500 kgf
2. Load cell resolution: 1/10,00
3. Load cell accuracy grade: 1st grade
4. Loading method: Manual or automatic
IV. Test Method for Wheel Clamping Force Release Testing Machine:
1. Secure the front wheel of the bicycle according to the standard.
2. Turn on the power supply. Set the force value on the force display screen and set the duration of the force application on the timer.
3.It was set to 30 seconds at the factory.
4. Press the execution key to start the test. The machine will automatically apply force to the sample. Once the force reaches the set value, the timer starts timing. When the set time is reached, the machine will automatically stop applying force.
5. After the test is completed, remove the sample and inspect whether there is any relative displacement between the front axle and the front fork. Determine if it is qualified.
6. Install the rear wheel of the bicycle according to the standard. Repeat steps 2, 3, and 4, and conduct the test for the rear wheel clamping force.
