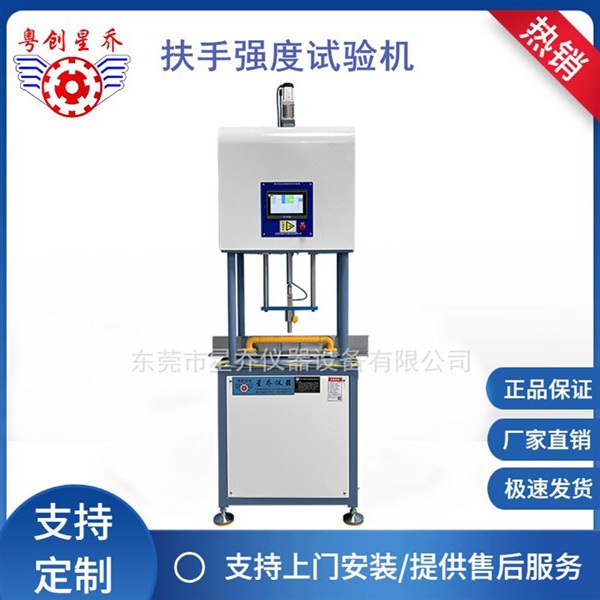

XQ-1537 Handrail Tensile and Compressive Strength Testing Machine
I. Technical Specifications：
1. Power Source: Servo motor + servo driver + planetary gear reducer
2. Transmission Mechanism: Ball screw electric cylinder
3. Test Pressure: 0 - 200KG
4. Tensile and Compressive Range: 0 - 150mm
5. Control Method: Professional high-precision touch screen software
6. Measurement Display: Digital touch screen
7. Testing Functions: Strength Test and Fatigue Test
8. Feature of Fixed Load: Fixed Time Function
9. Feature of Manual: Automatic Testing Function
10. Test Output: Electric Automatic Type
11. Test Speed Adjustment: Adjustable
12. Test Times: 0 - 99999 Adjustable and Displayable
13. Test Fixtures: 2 sets
14. Fixture Type: 1 set for tension and 1 set for tension and compression
15. Machine Dimensions: Approximately 850mm × 750mm × 1650mm (Length × Width × Height)
