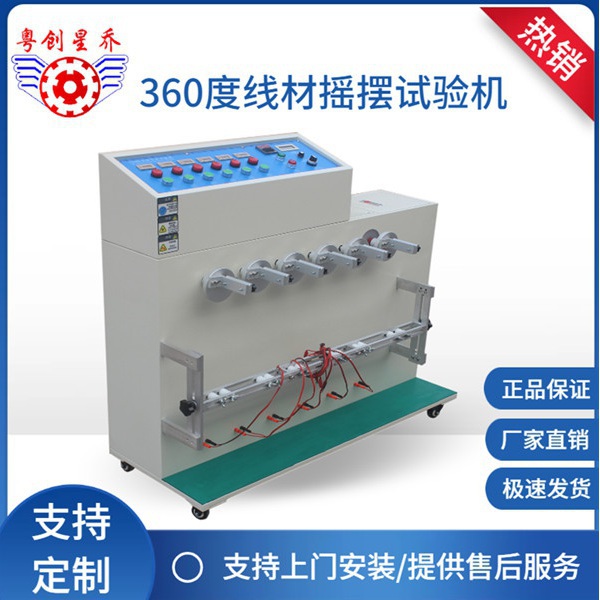

XQ-817B Wire Swinging Testing Machine
I. Application scope of the wire swaying testing machine;
II. Main parameters of the wire swaying testing machine;
1. Working power supply: AC 220V/50Hz
2. Power: 95W
3. Test speed: Adjustable from 5 to 60 times per minute
4. Bending angle: Adjustable from 45° to 360°
5. Test station: 6 stations
6. Test fixtures: 6
7. Position control and test: Conduct 6 or 1 plug lead tests simultaneously each time. Each test is independently controlled, counted, and reset.
8. Test conduction voltage: Low voltage DC 24V (with a load metering interface available at the back)
9. Total bending times: Can be preset from 0 to 999,99
10. Resetting the count: Automatic and manual conversion functions
11. Weights: 6 of each 50g, 100g, 200g, 300g, and 500g, totaling 30 pieces.
12. Volume: 1200*600*950mm
13. Weight: Approximately 140 kilograms
14. Speed display: LED digital display
15. Speed Control: Continuous Speed Adjustment
